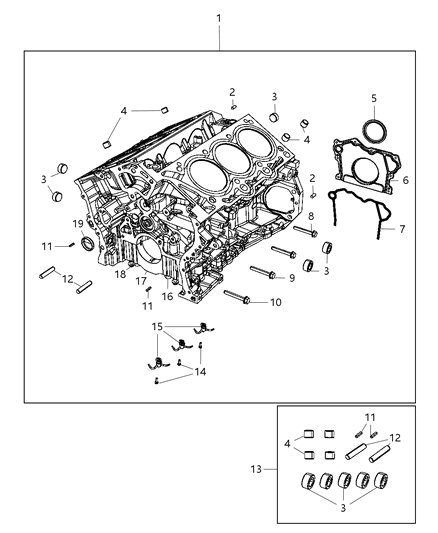

2011 Chrysler 300 Engine Cylinder Block And Hardware

ENGINE KIT Short Block Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.

DOWEL

PLUG Cylinder Block .375-18X1.343

PLUG Pipe M24X1.50 Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.

DOWEL PIN Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.

PLUG Camshaft [M47.93 OD 6.4 THK 51.5 FLG OD]

DOWEL Block to Clutch Housing 1/2X3/4

RETAINER AND SEAL Crankshaft Rear Oil

BOLT AND CONED WASHER Hex head M6X1.00X20.00

BOLT Hex Flange Head M12X1.75X91.50

BOLT Hex Head M8X1.25X40.00

BOLT Hex Head M8X1.25X58.00

PIN Dowel M8X10.00

PIN Dowel Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.

PIN Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.

PLUG .250-18X.690

PIN KIT Short Block Engine Item 13 Pin Kit Also Contained in Short Block Engine Kit. All Plugs And Dowel Pins Must Be Installed On Cylinder Block Before Installing Engine.

PLUG Hex Socket 3/8-18NPTx.475

BOLT Pan Head M5x.08x16.00

JET Piston Oil Cooler

BOLT Hex Flange Head M11X1.50X94.00

BOLT Hex Flange Head M8x1.25x97.00

PLUG Core 1.25 Diameter
