2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

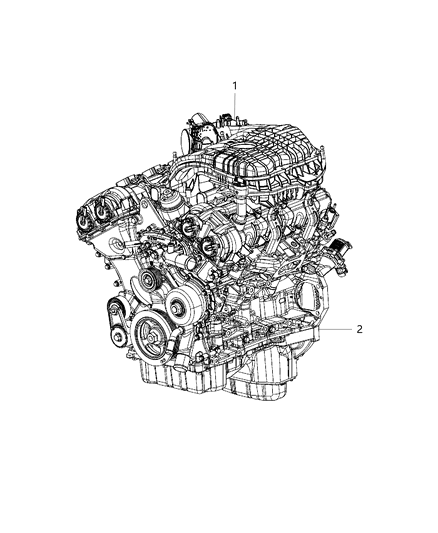

  • 1.3.6L Gas; Engine Engine Assembly And Service Long Block 3.6L [ERB]
    2011 Chrysler 300 Engine Assembly & Service Diagram 1 - Thumbnail
  • 2.5.7L Gas; Engine Engine Assembly And Service Long Block 5.7L [EZH]
    2011 Chrysler 300 Engine Assembly & Service Diagram 2 - Thumbnail
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 2 Chrysler 68259163AA Long Block
    68259163AA
    Long Block
    ENGINE Long Block SERVICE WARNING: If The Original Engine Has Experienced A Catastrophic Failure - Including Piston, Cylinder Bore, Valve, or Valve Seat Failure -The Intake Manifold Must Be Replaced With A New Manifold.
    • Replaced By: R8154340AA
    MSRP: $7325.00 Your Price: $6087.45
    1
    Add To Cart
  • 2 Chrysler R8154340AA Long Block
    R8154340AA
    Long Block
    ENGINE Long Block SERVICE WARNING: If The Original Engine Has Experienced A Catastrophic Failure - Including Piston, Cylinder Bore, Valve, or Valve Seat Failure -The Intake Manifold Must Be Replaced With A New Manifold.
    MSRP: $7325.00 Your Price: $6087.45
    1
    Add To Cart
