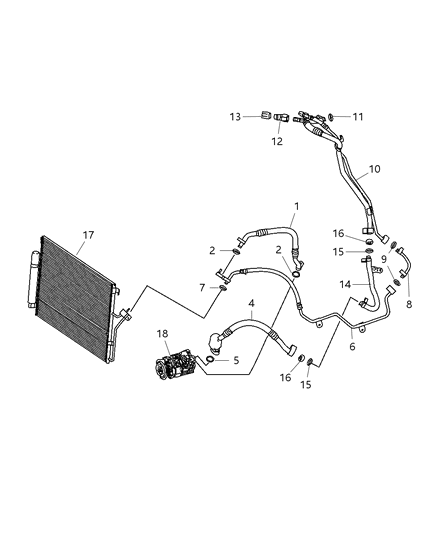

Diagram (1 of 1): Air Conditioners and Heaters Refrigerant Lines Chassis Cab [HAB]
2009 Dodge Sprinter 3500 Refrigerant Lines Chassis Cab Diagram
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 15 Dodge 5138942AA O Ring
    5138942AA
    O Ring
    • Require Quantity: 2
    • Package Quantity: 1
    • Replaced By: 5138942AB
  • 17 Dodge 2AMC3902AA Condenser - A/C
    2AMC3902AA
    Condenser - A/C
    CONDENSER A/C NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
    • [HAB], Magneti-Marelli Offered By MOPAR, See Note.
  • 17 Dodge 68013633AA Condenser
    68013633AA
    Condenser
    CONDENSER A/C NOTE:25 pc min Qty Mix and Match Pallet Program only, Use mopar.com to order, Magneti-Marelli Parts tab
    • With [HAB]
