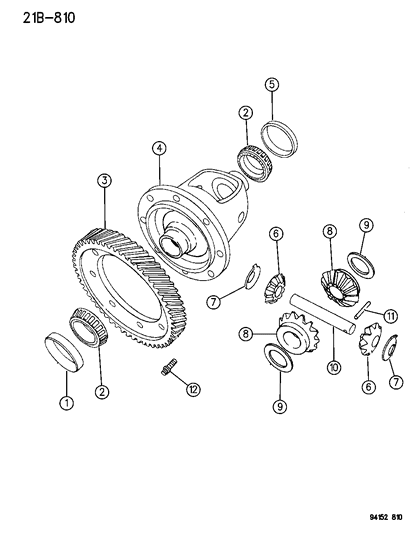

Diagram (1 of 1): TRANS. AUTO 41TE 4 SPEED DIFFERENTIAL AUTOMATIC TRANSAXLE, 4 SPEED, 41AE,41TE A,J,S,ES,JA BODY
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
4659237
CUP, Differential Brg., Left, 63mm O.D., Built Up to Approx. March 1995- Left, (Larger Brg. Cup on Lt. Side), Built After Approx. March 1995
- 2
4567382
CONE, Diff. Brg., Except 4659074,076 Trans., Built Up to Approx. March 1995- Right, 46mm I.D., Use w/4659074,076 Trans.
- 2
4659238
CONE, Diff. Brg., Except 4659074,076 Trans., Built Up to Approx. March 1995- Left (Larger Brg. Cone on Left Side), Use w/4659074,076 Trans., Built After Approx. March 1995
Left, (Larger Brg. Cone on Lt. Side), Built After Approx. March 1995
$152.00 $101.461
- 3
- 6
- 7
4412521
WASHER, Diff. Pinion Thrust, Spherical w/Tab, 0.79-0.84" Thk.- Require Quantity: 2
- Package Quantity: 1
$21.70 $15.021
- 9
- 10
- 12
