9 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Frame - Frame & Components (Body Mounting,Crew Cab 6.4' Box)
- 2.Frame - Frame & Components (Body Mounting,Crew Cab 8' Box)
- 3.Frame - Frame & Components (Body Mounting,Mega Cab)
- 4.Frame - Frame & Components (Body Mounting,Regular Cab)
- 5.Frame - Frame & Components (Crew Cab 6.4' Box,Frame & Crossmembers)
- 6.Frame - Frame & Components (Crew Cab 8' Box,Frame & Crossmembers,W/50 Gallon Tank)
- 7.Frame - Frame & Components (Crew Cab 8' Box,Frame & Crossmembers,W/O 50 Gallon Tank)
- 8.Frame - Frame & Components (Frame & Crossmembers,Mega Cab)
- 9.Frame - Frame & Components (Frame & Crossmembers,Regular Cab)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
68505696AA
Cushion- Part Notes: Crew Cab 6.4' Box, Body Mounting, Front;Crew Cab 8' Box, Body Mounting, Front;Mega Cab, Body Mounting, Front;Regular Cab, Body Mounting, Front
- Location: Driver Side;Passenger Side
$75.35 $52.431
- 1
68533969AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.7l, 2WD, W/O Dual Rear Wheels, W/O Auto Level
$3245.00 $2227.031 - 168533970AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.7l, 2WD, W/Dual Rear Wheels, 6.7l, 2WD, W/Dual Rear Wheels
$3285.00 $2255.651 - 168533971AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.4l, 2WD, W/O Dual Rear Wheels, W/O Auto Level
- Replaced By: 68724102AA
$3145.00 $2158.331 - 168533972AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.4l, 2WD, W/Dual Rear Wheels, 6.4l, 2WD, W/Dual Rear Wheels
- Replaced By: 68724103AA
$3310.00 $2272.831 - 168533974AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.4l, 2WD, W/O Dual Rear Wheels, W/Auto Level
- Replaced By: 68724104AA
$3225.00 $2215.581 - 1
68533975AC
Frame Assembly- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, 2WD, W/O Auto Level
- Replaced By: 68724109AA
$3195.00 $2192.681 - 168533976AC
Frame Assembly- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, 2WD, W/Auto Level
- Replaced By: 68724111AA
$3245.00 $2227.031 - 1
68533978AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, 2WD, Single Rear Wheels, W/O Auto Level
- Replaced By: 68724113AA
$3260.00 $2238.481 - 1
68533979AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, 2WD, Dual Rear Wheels, 6.7l
- Replaced By: 68724114AA
$3295.00 $2261.381 - 168533980AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, 2WD, Dual Rear Wheels, 6.7l
- Replaced By: 68724115AA
$3295.00 $2261.381 - 168533981AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, 2WD, Dual Rear Wheels, 6.4l
- Replaced By: 68724116AA
$3335.00 $2290.001 - 168533982AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, 2WD, Dual Rear Wheels, 6.4l
- Replaced By: 68724118AA
$3335.00 $2290.001 - 168533983AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, 2WD, Single Rear Wheels, W/Auto Level
- Replaced By: 68724119AA
$3310.00 $2272.831 - 168533984AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, 2WD, Single Rear Wheels, W/Auto Level
- Replaced By: 68724120AA
$3350.00 $2301.451 - 168533985AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.7l, 4WD, W/O Dual Rear Wheels, W/O Auto Level
- Replaced By: 68724121AA
$3195.00 $2192.681 - 168533986AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.7l, 4WD, W/Dual Rear Wheels, 6.7l, 4WD, W/Dual Rear Wheels
- Replaced By: 68724122AA
$3250.00 $2232.751 - 168533987AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.4l, 4WD, W/O Dual Rear Wheels, W/O Auto Level
- Replaced By: 68724123AA
$3110.00 $2135.431 - 168533988AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.4l, 4WD, W/Dual Rear Wheels, 6.4l, 4WD, W/Dual Rear Wheels
- Replaced By: 68724124AA
$3250.00 $2232.751 - 168533989AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.7l, 2WD, W/O Dual Rear Wheels, W/Auto Level;Regular Cab, Frame & Crossmembers, 6.7l, 4WD, W/O Dual Rear Wheels, W/Auto Level
- Replaced By: 68724125AA
$3275.00 $2249.931 - 168533991AC
Frame Assembly- Part Notes: Regular Cab, Frame & Crossmembers, 6.4l, 4WD, W/O Dual Rear Wheels, W/Auto Level
- Replaced By: 68724126AA
$3170.00 $2175.501 - 168533993AC
Frame Assembly- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, 4WD, W/O Auto Level
- Replaced By: 68724128AA
$3260.00 $2238.481 - 168533996AC
Frame Assembly- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, 4WD, W/Auto Level
- Replaced By: 68724129AA
$3185.00 $2186.951 - 1
68533998AC
Frame Assembly- Part Notes: Mega Cab, Frame & Crossmembers, 6.4l, W/O Auto Level
- Replaced By: 68724130AA
$3175.00 $2181.231 - 168533999AC
Frame Assembly- Part Notes: Mega Cab, Frame & Crossmembers, 6.7l, W/Dual Rear Wheel, 6.7l, W/Dual Rear Wheel
- Replaced By: 68724132AA
$3320.00 $2278.551 - 1$3260.00 $2238.481
- 168534001AC
Frame Assembly- Part Notes: Mega Cab, Frame & Crossmembers, 6.7l, W/O Dual Rear Wheel, W/Auto Level
- Replaced By: 68724133AA
$3345.00 $2295.731 - 168534002AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, 4WD, Dual Rear Wheels, All
$3260.00 $2238.481 - 168534008AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, 4WD, Single Rear Wheels, W/O Auto Lvl, 6.4l
- Replaced By: 68724139AA
$3225.00 $2215.581 - 168534009AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, 4WD, Single Rear Wheels, W/Auto Level
- Replaced By: 68724140AA
$3375.00 $2318.631 - 168534010AC
Frame Assembly- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, 4WD, Single Rear Wheels, W/Auto Level
- Replaced By: 68724141AA
$3275.00 $2249.931
- 2
68505697AA
Cushion- Part Notes: Crew Cab 6.4' Box, Body Mounting, A-Pillar;Crew Cab 8' Box, Body Mounting, A-Pillar;Mega Cab, Body Mounting, A-Pillar;Regular Cab, Body Mounting, A-Pillar
- Location: Driver Side;Passenger Side
$53.00 $36.891
- 2
68460029AA
Rail End- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Driver Side;Passenger Side
- 3
68402173AE
Cushion- Part Notes: Regular Cab, Body Mounting, B-Pillar
- Location: Driver Side;Passenger Side
$367.00 $249.261 - 3
68505698AA
Cushion- Part Notes: Crew Cab 6.4' Box, Body Mounting, B-Pillar;Crew Cab 8' Box, Body Mounting, B-Pillar;Mega Cab, Body Mounting, B-Pillar
- Location: Driver Side;Passenger Side
$73.50 $51.161
- 3
68417872AA
Stabilizer Mount- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Driver Side;Passenger Side
$93.65 $63.501
- 4
68363348AE
Cushion- Part Notes: Crew Cab 6.4' Box, Body Mounting, C-Pillar;Crew Cab 8' Box, Body Mounting, C-Pillar;Mega Cab, Body Mounting, C-Pillar
- Location: Driver Side;Passenger Side
$405.00 $271.921
- 4
6509459AA
Cushion Screw- Part Notes: Regular Cab, Body Mounting, M12x1.75x155.0
- Location: Driver Side;Passenger Side
$21.00 $14.621 - 4
6510855AA
Cushion Screw- Part Notes: Regular Cab, Body Mounting, M12x1.75x116.5
- Location: Driver Side;Passenger Side
$3.55 $2.441
- 4
52020870AC
Stabilizer Mount Spacer- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, Front & Upper;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, Front & Upper;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, Front & Upper;Mega Cab, Frame & Crossmembers, Front & Upper;Regular Cab, Frame & Crossmembers, Front & Upper
$143.00 $95.461 - 4
52020872AC
Stabilizer Mount Spacer- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, Rear;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank, Rear;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, Rear;Mega Cab, Frame & Crossmembers, Rear;Regular Cab, Frame & Crossmembers, Rear
$144.00 $96.471
- 5
6509459AA
Cushion Bolt- Part Notes: Crew Cab 6.4' Box, Body Mounting, Front;Crew Cab 8' Box, Body Mounting, Front;Mega Cab, Body Mounting, Front
- Location: Driver Side;Passenger Side
$21.00 $14.621
- 5
$3.95 $2.731
- 5
68359487AA
Stabilizer Mount Plate- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$22.30 $15.371
- 6
6510855AA
Cushion Bolt- Part Notes: Crew Cab 6.4' Box, Body Mounting, A-B Pillar;Crew Cab 8' Box, Body Mounting, A-B Pillar;Mega Cab, Body Mounting, A-B Pillar
- Location: Driver Side;Passenger Side
$3.55 $2.441
- 6
68406630AA
Trans Crossmember- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$580.00 $398.461
- 7
52121444AF
Crossmember- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$594.00 $407.621
- 7
6509459AA
Cushion Bolt- Part Notes: Crew Cab 8' Box, Body Mounting, C Pillar;Mega Cab, Body Mounting, C Pillar
- Location: Driver Side;Passenger Side
$21.00 $14.621 - 7
6510855AA
Cushion Bolt- Part Notes: Crew Cab 6.4' Box, Body Mounting, C Pillar
- Location: Driver Side;Passenger Side
$3.55 $2.441
- 8
68456203AA
Front Mount Bracket- Part Notes: Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank
- Location: Driver Side
- 8
68456208AA
Front Mount Bracket- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Passenger Side
$82.70 $57.541 - 868456212AA
Front Mount Bracket- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Driver Side
$82.70 $57.541
- 9
68394985AA
Cab Mount Bracket- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Driver Side
$125.00 $84.981 - 9
68140024AC
Cab Mount Bracket- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Passenger Side
$133.00 $90.021
- 10
68359204AA
Shock Mount- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Passenger Side
$28.30 $19.551 - 1068359205AA
Shock Mount- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
- Location: Driver Side
$72.25 $50.111
- 11
$190.00 $129.161 - 11
68452803AA
Support Brace- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$212.00 $143.891
- 12
- 13
68376680AA
Hanger- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, Front, #1;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, Front, #1;Mega Cab, Frame & Crossmembers, Front, #1;Regular Cab, Frame & Crossmembers, Front, #1
$8.95 $6.211
- 14
68376681AA
Hanger- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, Front, #2;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, Front, #2;Mega Cab, Frame & Crossmembers, Front, #2;Regular Cab, Frame & Crossmembers, Front, #2
$3.85 $2.671
- 15
68376150AA
Hanger- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers, Rear, Upper;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank, Rear, Upper;Mega Cab, Frame & Crossmembers, Rear, Upper;Regular Cab, Frame & Crossmembers, Rear, Upper
$3.75 $2.611
- 17

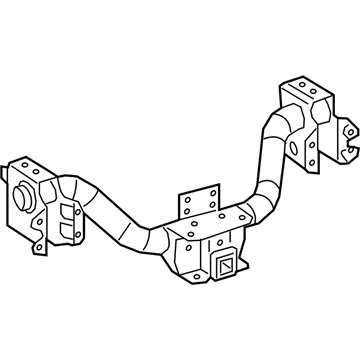

68533378AB
Trailer Hitch- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$503.00 $336.631
- 18
68165918AA
Trailer Hitch Adapter- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$40.90 $26.741
- 19

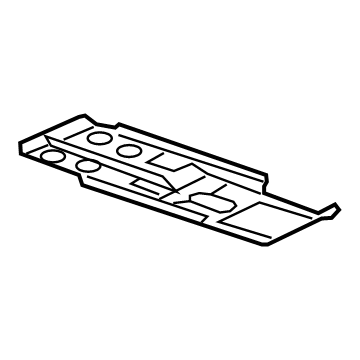

68089777AB
Skid Plate- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$60.45 $41.931
- 68363370AC
Damper- Part Notes: Crew Cab 6.4' Box, Body Mounting;Crew Cab 8' Box, Body Mounting;Mega Cab, Body Mounting
- Location: Passenger Side
$517.00 $352.661 - 68363377AB
Damper- Part Notes: Crew Cab 6.4' Box, Body Mounting;Crew Cab 8' Box, Body Mounting;Mega Cab, Body Mounting
- Location: Driver Side
- Replaced By: 68363377AC
$546.00 $372.131
- 68363350AF
Module- Part Notes: Crew Cab 6.4' Box, Body Mounting, Vibration Cancel;Crew Cab 8' Box, Body Mounting, Vibration Cancel;Mega Cab, Body Mounting, Vibration Cancel
- Location: Driver Side;Passenger Side
$285.00 $191.481
- 6512927AA
Trailer Hitch Mount Bolt- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$12.90 $8.871
6511233AA
Trans Crossmember Bolt- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$30.85 $21.341
6102252AA
Trans Crossmember Nut- Part Notes: Crew Cab 6.4' Box, Frame & Crossmembers;Crew Cab 8' Box, Frame & Crossmembers, W/50 Gallon Tank;Crew Cab 8' Box, Frame & Crossmembers, W/O 50 Gallon Tank;Mega Cab, Frame & Crossmembers;Regular Cab, Frame & Crossmembers
$9.10 $6.261
