3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

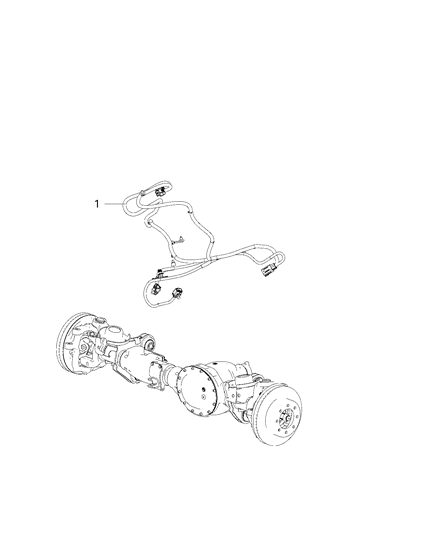

- 1.Electrical Wiring, Chassis and Underbody Axle, 4 Wheel Drive

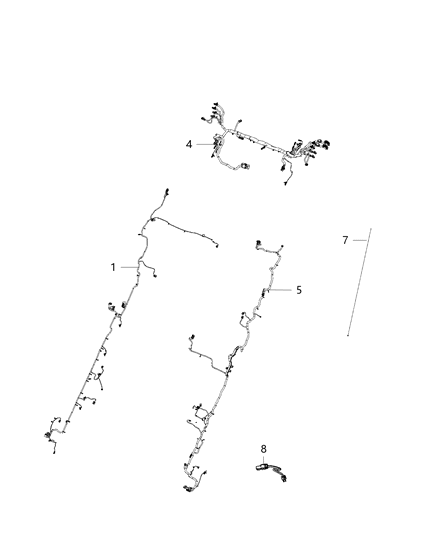

- 2.Electrical Wiring, Chassis and Underbody Chassis and Underbody
- 3.Electrical Wiring, Chassis and Underbody Trailer Tow
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 168358534AE
WIRING Chassis Right- Fitting Vehicle Options: 3 - HD DODGE 2WD, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ETN - 6 Cyl 6.7L Cummins Turbo Diesel
$509.00 $345.791 - 168359532AE
WIRING Chassis Right- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, ETN - 6 Cyl 6.7L Cummins Turbo Diesel
$411.00 $276.451 - 168359533AE
WIRING Chassis Right- Fitting Vehicle Options: 3 - HD DODGE 2WD, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, ETN - 6 Cyl 6.7L Cummins Turbo Diesel
$549.00 $374.421 - 168385070AE
WIRING Chassis Right- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, ESB - 8 Cyl 6.4L Heavy Duty HEMI
$208.00 $140.491 - 168385071AE
WIRING Chassis Right- Fitting Vehicle Options: 3 - HD DODGE 2WD, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, ESB - 8 Cyl 6.4L Heavy Duty HEMI
$267.00 $181.281
- 1
52112344AC
WIRING Jumper Frame To Dash- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4
- Replaced By: 52112344AD
$49.45 $34.221 - 152112345AC
WIRING Jumper Frame To Dash- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 93 - CREW CAB W.B.4
$44.50 $30.861
- 2$96.00 $65.091
- 2$45.15 $31.321
- 2$45.10 $31.201
- 568411651AD
WIRING Chassis Left- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, ESB - 8 Cyl 6.4L Heavy Duty HEMI
- Replaced By: 68411651AE
$251.00 $168.821 - 568411652AD
WIRING Chassis Left- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, ETN - 6 Cyl 6.7L Cummins Turbo Diesel
- Replaced By: 68411652AE
$232.00 $157.491 - 568411656AD
WIRING Chassis Left- Fitting Vehicle Options: 3 - HD DODGE 2WD, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, ESB - 8 Cyl 6.4L Heavy Duty HEMI
- Replaced By: 68411656AE
$268.00 $181.281 - 568411657AD
WIRING Chassis Left- Fitting Vehicle Options: 3 - HD DODGE 2WD, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, ETN - 6 Cyl 6.7L Cummins Turbo Diesel
- Replaced By: 68411657AE
$249.00 $168.821 - 568411661AD
WIRING Chassis Left- Fitting Vehicle Options: 3 - HD DODGE 2WD, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ESB - 8 Cyl 6.4L Heavy Duty HEMI
- Replaced By: 68411661AE
$230.00 $156.351 - 568411662AD
WIRING Chassis Left- Fitting Vehicle Options: 3 - HD DODGE 2WD, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ETN - 6 Cyl 6.7L Cummins Turbo Diesel
- Replaced By: 68411662AE
$407.00 $274.191
- 7
$42.65 $29.521 - 7
$27.35 $18.851 - 7$85.05 $57.671
- 8
$67.95 $47.101 - 8$32.80 $22.681
