4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

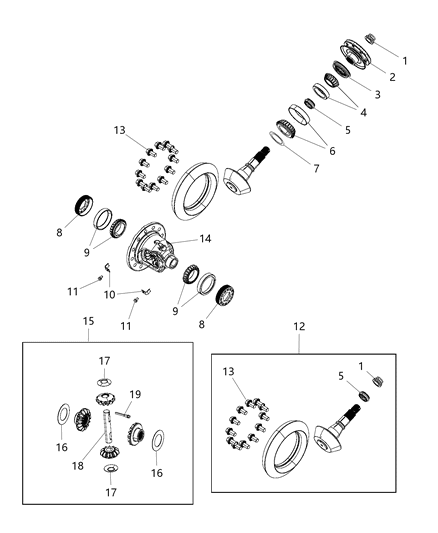

- 1.Rear Axle; Corporate 235 MM; Differential and Drive Line Differential Assembly

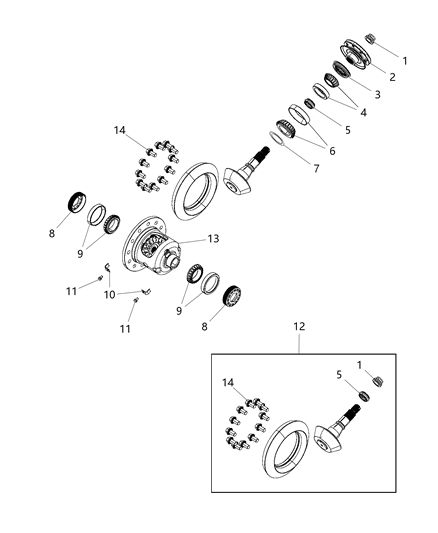

- 2.Rear Axle; Corporate 235 MM; Differential and Drive Line Differential Assembly

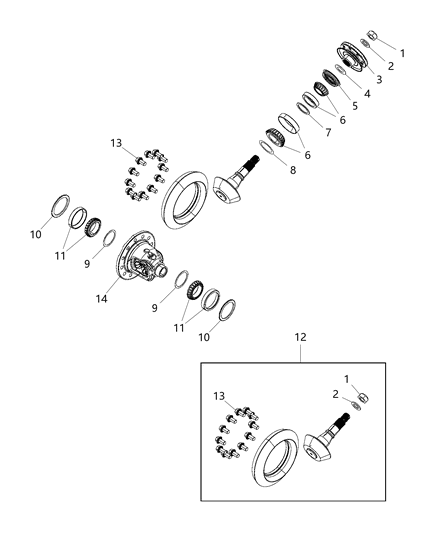

- 3.Rear Axle; Corporate 235 MM; Differential and Drive Line Differential Assembly

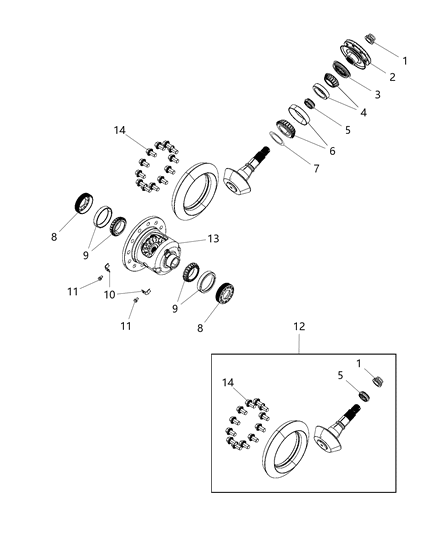

- 4.Rear Axle; Corporate 235 MM; Differential and Drive Line Differential Assembly Max Tow [AHQ]
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
6507901AA
NUT Pinion- [AWL] OR [ASP], [DMC], [DSH]
[AWL] OR [ASP], [DMD], [DSH]
[AWL] OR [ASP], [DMH], [DSH]
[DMC], [DS8]
[DMC], [DS8], [DSK]
[DMC], [DSA]
[DMC], [DSA], [DSK]
[DMD], [DS8]
[DMD], [DSA]
[DMH], [DS8]
[DMH], [DSA]
[DMH], [DSH]
$25.50 $17.751 - 1
$13.15 $8.99
- 2
$88.30 $59.881
- 2
$6.70 $4.641
- 3$198.00 $133.691
- 3
$44.25 $30.621
- 4
$120.00 $79.421
- 4
$13.15 $8.99
- 5
$55.05 $38.161
- 5
$17.05 $11.771
- 6
68340261AA
BEARING KIT Drive Pinion- Inner [AWL] OR [ASP], [DMC], [DSH] Contains: 1 Cup and 1 Cone
Inner [AWL] OR [ASP], [DMD], [DSH] Contains: 1 Cup and 1 Cone
Inner [AWL] OR [ASP], [DMH], [DSH] Contains: 1 Cup and 1 Cone
Inner [DMC], [DS8] Contains: 1 Cup and 1 Cone
Inner [DMC], [DS8], [DSK] Contains: 1 Cup and 1 Cone
Inner [DMC], [DSA] Contains: 1 Cup and 1 Cone
Inner [DMC], [DSA], [DSK] Contains: 1 Cup and 1 Cone
Inner [DMD], [DS8] Contains: 1 Cup and 1 Cone
Inner [DMD], [DSA] Contains: 1 Cup and 1 Cone
Inner [DMH], [DS8] Contains: 1 Cup and 1 Cone
Inner [DMH], [DSA] Contains: 1 Cup and 1 Cone
Inner [DMH], [DSH] Contains: 1 Cup and 1 Cone - Replaced By: 68340261AB
$191.00 $128.031 - 6
$239.00 $160.891
- 7
52111535AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.50mm
[DMC], [DS8], [DSK] 1.50mm
[DMD], [DS8] 1.50mm
[DMH], [DS8] 1.50mm
$20.25 $13.921 - 752111535AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.50mm
[AWL] OR [ASP], [DMD], [DSH] 1.50mm
[AWL] OR [ASP], [DMH], [DSH] 1.50mm
[DMC], [DSA] 1.50mm
[DMC], [DSA], [DSK] 1.50mm
[DMD], [DSA] 1.50mm
[DMH], [DSA] 1.50mm
[DMH], [DSH] 1.50mm
$20.25 $13.921 - 752111538AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.53mm
[DMC], [DS8], [DSK] 1.53mm
[DMD], [DS8] 1.53mm
[DMH], [DS8] 1.53mm
$11.00 $7.601 - 752111538AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.53mm
[AWL] OR [ASP], [DMD], [DSH] 1.53mm
[AWL] OR [ASP], [DMH], [DSH] 1.53mm
[DMC], [DSA] 1.53mm
[DMC], [DSA], [DSK] 1.53mm
[DMD], [DSA] 1.53mm
[DMH], [DSA] 1.53mm
[DMH], [DSH] 1.53mm
$11.00 $7.601 - 752111549AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.63mm
[DMC], [DS8], [DSK] 1.63mm
[DMD], [DS8] 1.63mm
[DMH], [DS8] 1.63mm
$11.95 $8.241 - 752111549AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.63mm
[AWL] OR [ASP], [DMD], [DSH] 1.63mm
[AWL] OR [ASP], [DMH], [DSH] 1.63mm
[DMC], [DSA] 1.63mm
[DMC], [DSA], [DSK] 1.63mm
[DMD], [DSA] 1.63mm
[DMH], [DSA] 1.63mm
[DMH], [DSH] 1.63mm
$11.95 $8.241 - 752111540AB
SHIM Drive Pinion Bearing- [DMC], [DSA] 1.55mm
[DMC], [DSA], [DSK] 1.55mm
[DMD], [DSA] 1.55mm
[DMH], [DSA] 1.55mm
$18.75 $12.991 - 752111540AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.55mm
[AWL] OR [ASP], [DMD], [DSH] 1.55mm
[AWL] OR [ASP], [DMH], [DSH] 1.55mm
[DMC], [DS8] 1.55mm
[DMC], [DS8], [DSK] 1.55mm
[DMD], [DS8] 1.55mm
[DMH], [DS8] 1.55mm
[DMH], [DSH] 1.55mm
$18.75 $12.991 - 752111544AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.58mm
[AWL] OR [ASP], [DMD], [DSH] 1.58mm
[AWL] OR [ASP], [DMH], [DSH] 1.58mm
[DMC], [DSA] 1.58mm
[DMC], [DSA], [DSK] 1.58mm
[DMD], [DSA] 1.58mm
[DMH], [DSA] 1.58mm
[DMH], [DSH] 1.58mm
$11.00 $7.601 - 752111544AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.58mm
[DMC], [DS8], [DSK] 1.58mm
[DMD], [DS8] 1.58mm
[DMH], [DS8] 1.58mm
$11.00 $7.601 - 752111546AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.60mm
[AWL] OR [ASP], [DMD], [DSH] 1.60mm
[AWL] OR [ASP], [DMH], [DSH] 1.60mm
[DMC], [DSA] 1.60mm
[DMC], [DSA], [DSK] 1.60mm
[DMD], [DSA] 1.60mm
[DMH], [DSA] 1.60mm
[DMH], [DSH] 1.60mm
$19.05 $13.111 - 752111546AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.60mm
[DMC], [DS8], [DSK] 1.60mm
[DMD], [DS8] 1.60mm
[DMH], [DS8] 1.60mm
$19.05 $13.111 - 752111570AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.68mm
[DMC], [DS8], [DSK] 1.68mm
[DMD], [DS8] 1.68mm
[DMH], [DS8] 1.68mm
- 752111570AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.68mm
[AWL] OR [ASP], [DMD], [DSH] 1.68mm
[AWL] OR [ASP], [DMH], [DSH] 1.68mm
[DMC], [DSA] 1.68mm
[DMC], [DSA], [DSK] 1.68mm
[DMD], [DSA] 1.68mm
[DMH], [DSA] 1.68mm
[DMH], [DSH] 1.68mm
- 752111572AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.70mm
[DMC], [DS8], [DSK] 1.70mm
[DMD], [DS8] 1.70mm
[DMH], [DS8] 1.70mm
- 752111572AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.70mm
[AWL] OR [ASP], [DMD], [DSH] 1.70mm
[AWL] OR [ASP], [DMH], [DSH] 1.70mm
[DMC], [DSA] 1.70mm
[DMC], [DSA], [DSK] 1.70mm
[DMD], [DSA] 1.70mm
[DMH], [DSA] 1.70mm
[DMH], [DSH] 1.70mm
- 752111577AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.73mm
[AWL] OR [ASP], [DMD], [DSH] 1.73mm
[AWL] OR [ASP], [DMH], [DSH] 1.73mm
[DMC], [DSA] 1.73mm
[DMC], [DSA], [DSK] 1.73mm
[DMD], [DSA] 1.73mm
[DMH], [DSA] 1.73mm
[DMH], [DSH] 1.73mm
$11.80 $8.061 - 752111577AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.73mm
[DMC], [DS8], [DSK] 1.73mm
[DMD], [DS8] 1.73mm
[DMH], [DS8] 1.73mm
$11.80 $8.061 - 752111582AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.78mm
[DMC], [DS8], [DSK] 1.78mm
[DMD], [DS8] 1.78mm
[DMH], [DS8] 1.78mm
$11.70 $8.061 - 752111582AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.78mm
[AWL] OR [ASP], [DMD], [DSH] 1.78mm
[AWL] OR [ASP], [DMH], [DSH] 1.78mm
[DMC], [DSA] 1.78mm
[DMC], [DSA], [DSK] 1.78mm
[DMD], [DSA] 1.78mm
[DMH], [DSA] 1.78mm
[DMH], [DSH] 1.78mm
$11.70 $8.061 - 752111584AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.80mm
[AWL] OR [ASP], [DMD], [DSH] 1.80mm
[AWL] OR [ASP], [DMH], [DSH] 1.80mm
[DMC], [DSA] 1.80mm
[DMC], [DSA], [DSK] 1.80mm
[DMD], [DSA] 1.80mm
[DMH], [DSA] 1.80mm
[DMH], [DSH] 1.80mm
$20.35 $13.981 - 752111584AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.80mm
[DMC], [DS8], [DSK] 1.80mm
[DMD], [DS8] 1.80mm
[DMH], [DS8] 1.80mm
$20.35 $13.981 - 752111552AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.65mm
[AWL] OR [ASP], [DMD], [DSH] 1.65mm
[AWL] OR [ASP], [DMH], [DSH] 1.65mm
[DMC], [DSA] 1.65mm
[DMC], [DSA], [DSK] 1.65mm
[DMD], [DSA] 1.65mm
[DMH], [DSA] 1.65mm
[DMH], [DSH] 1.65mm
$20.15 $13.861 - 752111552AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.65mm
[DMC], [DS8], [DSK] 1.65mm
[DMD], [DS8] 1.65mm
[DMH], [DS8] 1.65mm
$20.15 $13.861 - 752111579AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.75mm
[DMC], [DS8], [DSK] 1.75mm
[DMD], [DS8] 1.75mm
[DMH], [DS8] 1.75mm
$18.75 $12.991 - 752111579AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.75mm
[AWL] OR [ASP], [DMD], [DSH] 1.75mm
[AWL] OR [ASP], [DMH], [DSH] 1.75mm
[DMC], [DSA] 1.75mm
[DMC], [DSA], [DSK] 1.75mm
[DMD], [DSA] 1.75mm
[DMH], [DSA] 1.75mm
[DMH], [DSH] 1.75mm
$18.75 $12.991 - 752111600AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.83mm
[AWL] OR [ASP], [DMD], [DSH] 1.83mm
[AWL] OR [ASP], [DMH], [DSH] 1.83mm
[DMC], [DSA] 1.83mm
[DMC], [DSA], [DSK] 1.83mm
[DMD], [DSA] 1.83mm
[DMH], [DSA] 1.83mm
[DMH], [DSH] 1.83mm
$12.45 $8.581 - 752111600AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.83mm
[DMC], [DS8], [DSK] 1.83mm
[DMD], [DS8] 1.83mm
[DMH], [DS8] 1.83mm
$12.45 $8.581 - 752111602AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.85mm
[AWL] OR [ASP], [DMD], [DSH] 1.85mm
[AWL] OR [ASP], [DMH], [DSH] 1.85mm
[DMC], [DSA] 1.85mm
[DMC], [DSA], [DSK] 1.85mm
[DMD], [DSA] 1.85mm
[DMH], [DSA] 1.85mm
[DMH], [DSH] 1.85mm
$21.75 $15.021 - 752111602AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.85mm
[DMC], [DS8], [DSK] 1.85mm
[DMD], [DS8] 1.85mm
[DMH], [DS8] 1.85mm
$21.75 $15.021 - 752111605AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.88mm
[AWL] OR [ASP], [DMD], [DSH] 1.88mm
[AWL] OR [ASP], [DMH], [DSH] 1.88mm
[DMC], [DSA] 1.88mm
[DMC], [DSA], [DSK] 1.88mm
[DMD], [DSA] 1.88mm
[DMH], [DSA] 1.88mm
[DMH], [DSH] 1.88mm
$11.80 $8.061 - 752111605AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.88mm
[DMC], [DS8], [DSK] 1.88mm
[DMD], [DS8] 1.88mm
[DMH], [DS8] 1.88mm
$11.80 $8.061 - 752111607AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.90mm
[DMC], [DS8], [DSK] 1.90mm
[DMD], [DS8] 1.90mm
[DMH], [DS8] 1.90mm
$21.75 $15.021 - 752111607AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.90mm
[AWL] OR [ASP], [DMD], [DSH] 1.90mm
[AWL] OR [ASP], [DMH], [DSH] 1.90mm
[DMC], [DSA] 1.90mm
[DMC], [DSA], [DSK] 1.90mm
[DMD], [DSA] 1.90mm
[DMH], [DSA] 1.90mm
[DMH], [DSH] 1.90mm
$21.75 $15.021 - 752111610AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.93mm
[DMC], [DS8], [DSK] 1.93mm
[DMD], [DS8] 1.93mm
[DMH], [DS8] 1.93mm
$12.40 $8.471 - 752111610AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.93mm
[AWL] OR [ASP], [DMD], [DSH] 1.93mm
[AWL] OR [ASP], [DMH], [DSH] 1.93mm
[DMC], [DSA] 1.93mm
[DMC], [DSA], [DSK] 1.93mm
[DMD], [DSA] 1.93mm
[DMH], [DSA] 1.93mm
[DMH], [DSH] 1.93mm
$12.40 $8.471 - 752111612AB
SHIM Drive Pinion Bearing- [AWL] OR [ASP], [DMC], [DSH] 1.95mm
[AWL] OR [ASP], [DMD], [DSH] 1.95mm
[AWL] OR [ASP], [DMH], [DSH] 1.95mm
[DMC], [DSA] 1.95mm
[DMC], [DSA], [DSK] 1.95mm
[DMD], [DSA] 1.95mm
[DMH], [DSA] 1.95mm
[DMH], [DSH] 1.95mm
$21.75 $15.021 - 752111612AB
SHIM Drive Pinion Bearing- [DMC], [DS8] 1.95mm
[DMC], [DS8], [DSK] 1.95mm
[DMD], [DS8] 1.95mm
[DMH], [DS8] 1.95mm
$21.75 $15.021
- 7
$74.60 $51.851
- 8
$27.20 $18.791
- 8
$115.00 $77.951
- 9
$191.00 $128.031
- 9$148.00 $100.271
- 10$2.75 $1.861
- 10
$189.00 $128.031
- 11
$199.00 $134.831
- 11
$9.10 $6.321
- 12
68088162AE
GEAR KIT Ring And Pinion- [AWL] OR [ASP], [DMC], [DSH] Includes: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMC], [DS8] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMC], [DS8], [DSK] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMC], [DSA] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMC], [DSA], [DSK] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
$888.00 $606.85 - 1268088164AD
GEAR KIT Ring And Pinion- [AWL] OR [ASP], [DMD], [DSH] Includes: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMD], [DS8] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMD], [DSA] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
$1350.00 $911.421 - 12$915.00 $628.61
- 1268428690AA
GEAR KIT Ring And Pinion- [AWL] OR [ASP], [DMH], [DSH] Includes: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMH], [DS8] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMH], [DSA] Contains: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
[DMH], [DSH] Includes: Ring and Pinion, Ring Gear Bolts, Pinion Spacer and Pinion Nut
$774.00 $528.991
- 13$4.55 $3.131
- 13
$12.65 $8.761
- 13
$1060.00 $719.061 - 1368234486AA
CASE Differential- [AWL] OR [ASP], [DMC], [DSH] Includes: Locker Actuator
[AWL] OR [ASP], [DMD], [DSH] Includes: Locker Actuator
[AWL] OR [ASP], [DMH], [DSH] Includes: Locker Actuator
[DMH], [DSH] Includes: Locker Actuator
- 146509765AA
BOLT Hex Flange Head M14x1.00x26.50- [DMC], [DSA]
[DMC], [DSA], [DSK]
[DMD], [DSA]
[DMH], [DSA] - Require Quantity: 12
- Package Quantity: 1
$4.55 $3.131 - 146509765AA
BOLT Hex Flange Head M14x1.00x26.50- [AWL] OR [ASP], [DMC], [DSH]
[AWL] OR [ASP], [DMD], [DSH]
[AWL] OR [ASP], [DMH], [DSH]
[DMH], [DSH]
$4.55 $3.131
- 14
$711.00 $485.481 - 14
$374.00 $252.661
- 15
$767.00 $524.411
- 16
$184.00 $123.501
- 17
$6.65 $4.521
- 18
- 19
$3.20 $2.201
