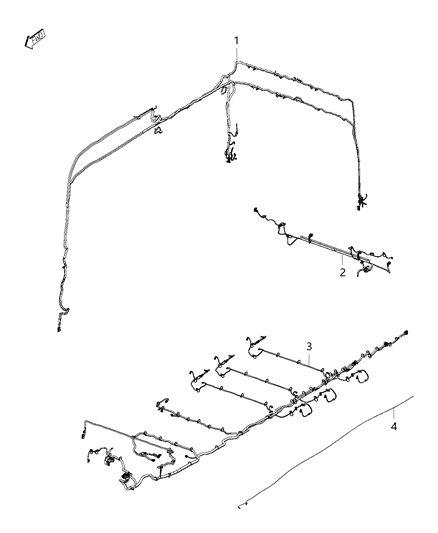

Diagram (1 of 1): Electrical Wiring, Chassis and Underbody
Enlarge Diagram
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 168311865AC
WIRING Body Interior- [CHR], [RA2] And/Or [UA1]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
$547.00 $375.561 - 168311866AC
WIRING Body Interior- [GTP], [BC3], [JKP]
[GTR] OR [GTB] - Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
$629.00 $431.671 - [GTP], [BC3], [JKP]
- 168311867AC
WIRING Body Interior- [GTR] Or [GTB], [RA2] And/Or [UA1]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
$786.00 $537.011 - 168311870AC
WIRING Body Interior- [CD9]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
- 168311874AC
WIRING Body Interior- [CAA]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
$564.00 $387.011 - 168311875AC
WIRING Body Interior- [CAA], [RA2] And/Or [UA1]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
$803.00 $549.601 - 168311877AC
WIRING Body Interior- [GTP], [BC3]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
- 168311878AC
WIRING Body Interior- [GTP], [BC3], [RA2] AND/OR [UA1]
- Fitting Vehicle Options: 13 - 119 WB, 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
$605.00 $413.351 - 168311886AC
WIRING Body Interior- [CD9], [CEA]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 2 - Med. Duty DODGE 2WD, ERB - 6 Cyl 3.6L 24V VVT
$659.00 $452.281 - 168311887AC
WIRING Body Interior- [CEA], [CD9], [RA2] And/Or [UA1]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 2 - Med. Duty DODGE 2WD, ERB - 6 Cyl 3.6L 24V VVT
$570.00 $391.591
- 2
$78.95 $54.811
- 352112512AA
WIRING Body Left- Fitting Vehicle Options: 13 - 119 WB, 2 - Med. Duty DODGE 2WD, ERB - 6 Cyl 3.6L 24V VVT
- Replaced By: 52112512AC
$174.00 $116.701 - 352112513AB
WIRING Body Left- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, ERB - 6 Cyl 3.6L 24V VVT
- Replaced By: 52112513AC
$147.00 $98.461 - 368264701AB
WIRING Body Left- [XC4]
- Fitting Vehicle Options: 16 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 26 - GLAZED VAN, EXG - 4 Cyl 3.0L ECO Diesel
- 368265702AB
WIRING Body Left- [XC4]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 2 - Med. Duty DODGE 2WD, EXG - 4 Cyl 3.0L ECO Diesel
- Replaced By: 68265703AE
$462.00 $313.841 - 368265703AB
WIRING Body Left- [BC3], [XC4]
- Fitting Vehicle Options: 02 - CAB CHASSIS WHEEL BASE , 2 - Med. Duty DODGE 2WD, EXG - 4 Cyl 3.0L ECO Diesel
- Replaced By: 68265703AE
$462.00 $313.841
- 4$535.00 $364.111
