2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

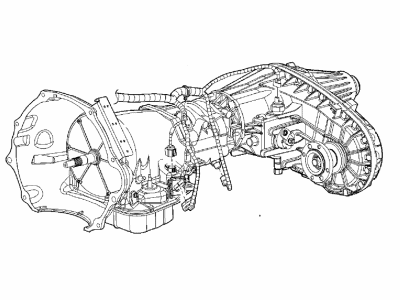

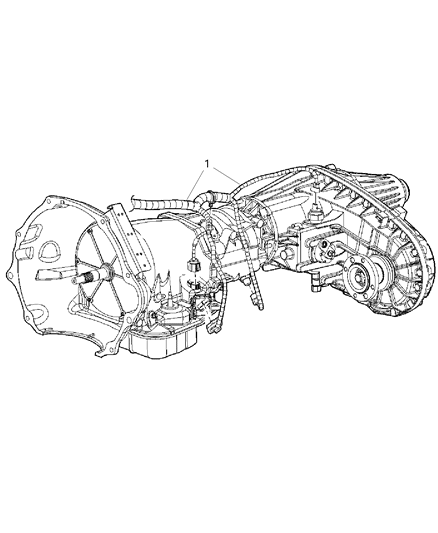

- 1.Electrical Wiring, Transmission 6.4L [ESB]
- 2.Electrical Wiring, Transmission 6.7L Diesel [ETK]
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1

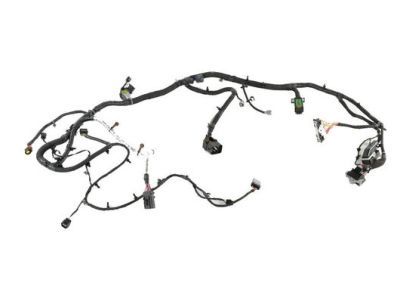

68224246AA
WIRING Transmission- [LBV]
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DF3 - 6-Speed Automatic Transmission Aisin AS66RC HD, ESB - 8 Cyl 6.4L Heavy Duty HEMI MDS
- Replaced By: 68224246AB
$518.00 $352.661 - 168296531AC

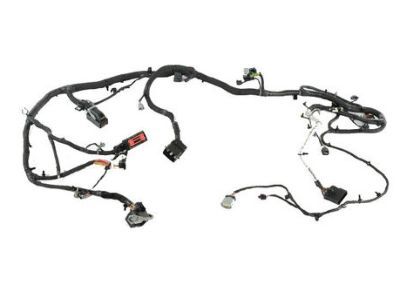

WIRING Transmission- [BAD], [DK1]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DFP - 6-Speed Automatic Transmission 66RFE, ESB - 8 Cyl 6.4L Heavy Duty HEMI MDS
- Replaced By: 68296531AE
$1235.00 $840.431
- 168224246AA
WIRING Transmission Includes Portions Of The Engine Wirng- [LBV]
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DF2 - 6-Speed Automatic Transmission Aisin AS69RC HD, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
- Replaced By: 68224246AB
$518.00 $352.661 - 1
52112938AC
WIRING Transmission Includes Portions Of The Engine Wirng- [DK3]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DF2 - 6-Speed Automatic Transmission Aisin AS69RC HD, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
$1255.00 $848.451 - 1
52112939AC
WIRING Transmission Includes Portions Of The Engine Wirng- [DK1]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DF2 - 6-Speed Automatic Transmission Aisin AS69RC HD, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
$1270.00 $855.32 - 152112940AC
WIRING Transmission Includes Portions Of The Engine Wirng- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 93 - CREW CAB W.B.4, DF2 - 6-Speed Automatic Transmission Aisin AS69RC HD, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
$768.00 $524.411 - 152112948AC
WIRING Transmission Includes Portions Of The Engine Wirng- [DK3]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DEG - 6-Speed Manual Transmission G56, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
$493.00 $333.101 - 152112949AC
WIRING Transmission Includes Portions Of The Engine Wirng- [DK1]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, DEG - 6-Speed Manual Transmission G56, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
$413.00 $279.851 - 152112950AC
WIRING Transmission Includes Portions Of The Engine Wirng- Fitting Vehicle Options: 3 - HD DODGE 2WD, 63 - REG CAB CHASSIS WHEEL BASE 1, 93 - CREW CAB W.B.4, DEG - 6-Speed Manual Transmission G56, ETK - 6 Cyl 6.7L Cummins Turbo Diesel
$438.00 $296.851
$3.50 $2.381
$24.60 $16.941
$26.10 $17.981
