2017 Jeep Compass Timing System

Currently shopping for
2017 Jeep Compass
Change Vehicle
6 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

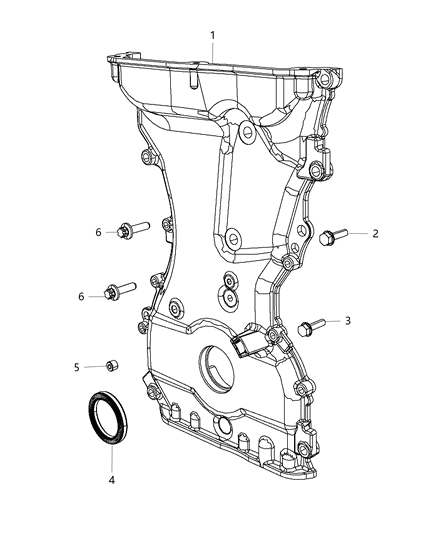

  • 1.2.0L DOHC 16V E22; Engine Timing Case Cover 2.0L [ECT]
    2017 Jeep Compass Timing System Diagram 1 - Thumbnail

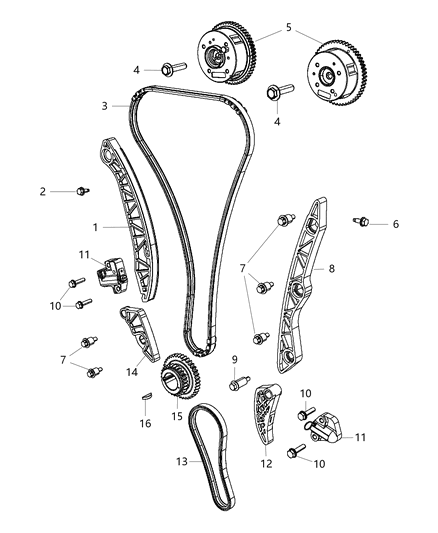

  • 2.2.0L DOHC 16V E22; Engine Timing System 2.0L [ECT]
    2017 Jeep Compass Timing System Diagram 2 - Thumbnail
  • 3.2.0L Gas; Engine Timing Case Cover 2.0L [ECN]
    2017 Jeep Compass Timing System Diagram 3 - Thumbnail
  • 4.2.0L Gas; Engine Timing System 2.0L [ECN]
    2017 Jeep Compass Timing System Diagram 4 - Thumbnail
  • 5.2.4L Gas; Engine Timing Case Cover 2.4L [ED3]
    2017 Jeep Compass Timing System Diagram 5 - Thumbnail
  • 6.2.4L Gas; Engine Timing System 2.4L [ED3]
    2017 Jeep Compass Timing System Diagram 6 - Thumbnail
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 7
    2434825000
    BOLT
    • Mounting Timing Chain Guide Fixed To Cylinder Block
    • Require Quantity: 3
    • Package Quantity: 1
    $2.85 $1.91
  • 7
    2434825000
    BOLT
    • Mounting Balance Shaft Chain Guide To Ladder Frame
    • Require Quantity: 2
    • Package Quantity: 1
    $2.85 $1.91
  • 11
    2441025000
    TENSIONER Chain
    • Primary Timing Chain
    • Fitting Vehicle Options: 49 - HATCHBACK TYPE #2, ECN - 4 Cyl 2.0L DOHC 16V Dual VVT, ECT, ED3 - 4 Cyl 2.4L DOHC 16V Dual VVT, J - JEEP - 4WD, T - JEEP - 2WD
    $306.00 $206.21
    1
    Add To Cart
  • 11
    5047281AA
    TENSIONER Chain
    • Balance Shaft Chain
    • Fitting Vehicle Options: 49 - HATCHBACK TYPE #2, ECN - 4 Cyl 2.0L DOHC 16V Dual VVT, ED3 - 4 Cyl 2.4L DOHC 16V Dual VVT, J - JEEP - 4WD, T - JEEP - 2WD
    $185.00 $123.50
    1
    Add To Cart
