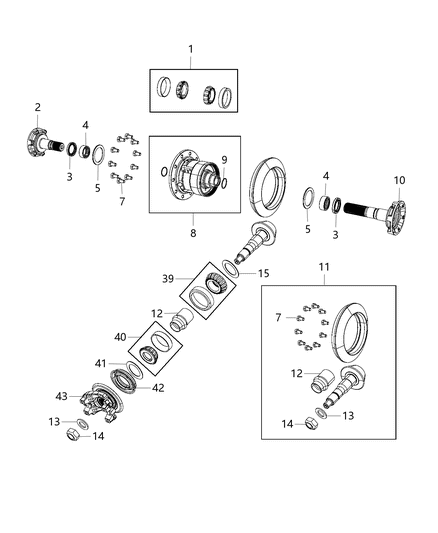

Diagram (1 of 1): Rear Wheel Drive; Differential and Drive Line Differential Assembly

2017 Dodge Viper Differential Assembly Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
68046923AA
BEARING KIT Differential Side
$53.45 $44.95
1
Add To Cart

2
68203472AA
SHAFT Axle Intermediate
- Replaced By: 68203472AB
$1695.00 $1156.45
1
Add To Cart

3
4626696
SEAL Axle Drive Shaft
$33.95 $23.49
1
Add To Cart
3
4626696
SEAL Axle Drive Shaft
- [DSK]
- Require Quantity: 2
- Package Quantity: 1
$33.95 $23.49
1
Add To Cart

4
68046911AA
BEARING Axle Shaft
$25.15 $19.43
1
Add To Cart
4
68046911AA
BEARING Axle Shaft
- [DSK]
- Require Quantity: 2
- Package Quantity: 1
$25.15 $19.43
1
Add To Cart

5
5013882AA
SHIM KIT Differential
$93.50 $63.45
1
Add To Cart

7

5012810AC
BOLT KIT Ring Gear 7/16-20x0.750
$54.75 $37.93
1
Add To Cart

8
5038236AF
CASE ASSEMBLY Differential
$4590.00 $3148.75
1
Add To Cart

9
68184320AA
SNAP RING Differential
- Require Quantity: 2
- Package Quantity: 1
$6.45 $4.93
1
Add To Cart

10

68203473AA
SHAFT Axle Intermediate
$260.00 $215.27
1
Add To Cart

11

68203459AA
GEAR KIT Ring And Pinion
$651.00 $440.83
1
Add To Cart

12
4864214
SPACER Drive Pinion Bearing
$31.25 $21.58
1
Add To Cart

13

1795175
WASHER Pinion
$6.70 $4.64
1
Add To Cart

14

5191197AA
NUT Pinion
$13.15 $8.99

15
4856368
SHIM KIT Pinion Shaft 0.035 to 0.039
$101.00 $68.43
1
Add To Cart

39
68203455AA
BEARING KIT Drive Pinion
$94.30 $61.69
1
Add To Cart

40
68046925AA
BEARING KIT Drive Pinion
$74.35 $60.45
1
Add To Cart

41

4746867
SLINGER Drive Pinion
$13.15 $8.99

42
5019843AA
SEAL Drive Pinion
$53.50 $37.12
1
Add To Cart

43

5093385AA
YOKE Drive Shaft

5017375AA
SHIM Differential Bearing
Serviced in 05013882AA, -0.131 Shim
Serviced in 05013882AA, -0.131 Shim[DSK]
$38.35 $26.51
1
Add To Cart
5017376AA
SHIM Differential Bearing
- Serviced in 05013882AA, -0.132 Shim
  Serviced in 05013882AA, -0.132 Shim[DSK]
5017377AA
SHIM Differential Bearing
- Serviced in 05013882AA, -0.133 Shim
  Serviced in 05013882AA, -0.133 Shim[DSK]
$35.10 $24.36
1
Add To Cart
5017378AA
SHIM Differential Bearing
- Serviced in 05013882AA, -0.134 Shim
  Serviced in 05013882AA, -0.134 Shim[DSK]
$34.80 $24.07
1
Add To Cart
5017383AA
SHIM Differential Bearing
- Serviced in 05013882AA, -0.135 Shim
  Serviced in 05013882AA, -0.135 Shim[DSK]
$38.25 $26.51
1
Add To Cart
