2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

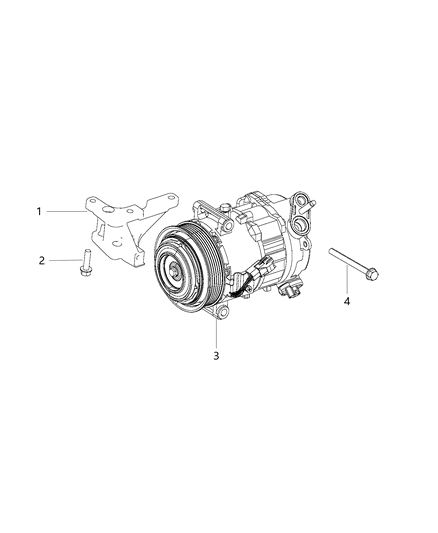

  • 1.Air Conditioners and Heaters A/C Compressor Mounting 2.4L [ED6] [ED8] [EDD] [EDE]
    2016 Chrysler 200 A/C Compressor Mounting Diagram 1 - Thumbnail

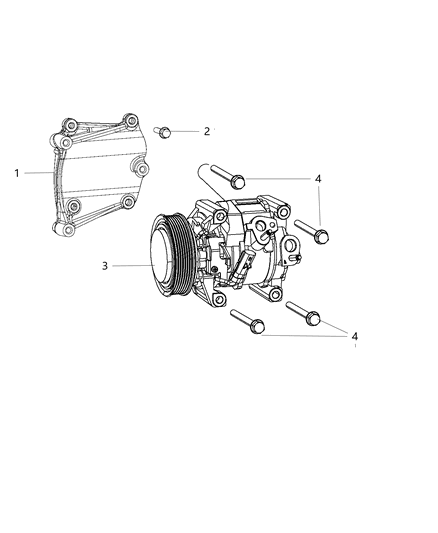

  • 2.Air Conditioners and Heaters A/C Compressor Mounting 3.6L [ERB]
    2016 Chrysler 200 A/C Compressor Mounting Diagram 2 - Thumbnail
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    4627487AA
    Mount Bracket
    BRACKET A/C Compressor
    • Fitting Vehicle Options: 41 - SEDAN/QUAD CAB SWB, C - CHRYSLER, ERB - 6 Cyl 3.6L 24V VVT, F - BRAND AWD
    MSRP: $74.30 Your Price: $51.50
    1
    Add To Cart
  • 1
    4627309AB
    Bracket - A/C Compressor
    • Fitting Vehicle Options: 41 - SEDAN/QUAD CAB SWB, C - CHRYSLER, ED6 - 4 Cyl 2.4L MultiAir, ED8 - 4 Cyl 2.4L PZEV M-Air, EDD - 4 Cyl 2.4L MultiAir Engine w/ ESS, EDE - 4 Cyl 2.4L PZEV M-Air Engine w/ ESS, F - BRAND AWD
    • Replaced By: 4627309AC
    MSRP: $66.00 Your Price: $45.76
    1
    Add To Cart
  • 2 Chrysler 6509285AA Bolt
    6509285AA
    Bolt
    BOLT Hex Flange Head M8X1.25X30.00
    • Require Quantity: 3
    • Package Quantity: 1
    MSRP: $2.65 Your Price: $1.80
    1
    Add To Cart
  • 4
    6104207AA
    Compressor Bolt
    BOLT Hex Head M8X1.25X90
    • Require Quantity: 3
    • Package Quantity: 1
    MSRP: $15.15 Your Price: $10.38
    1
    Add To Cart
