4 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
  • 1.1.4L Turbo; Engine Exhaust Manifold 1.4L Turbocharged [EAF]

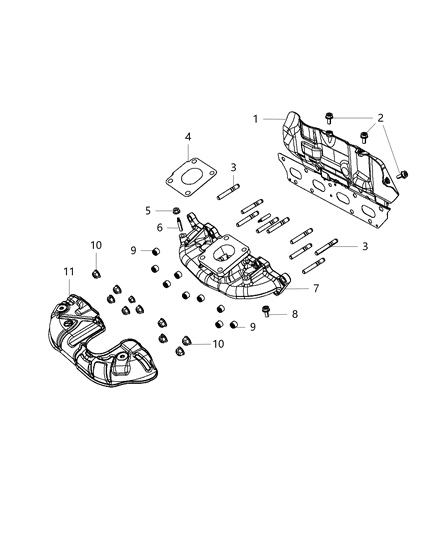

    2015 Dodge Dart Exhaust Manifold & Heat Shield Diagram 1 - Thumbnail
  • 2.2.0L Gas; Engine Exhaust Manifold And Heat Shields 2.0L [ECK]

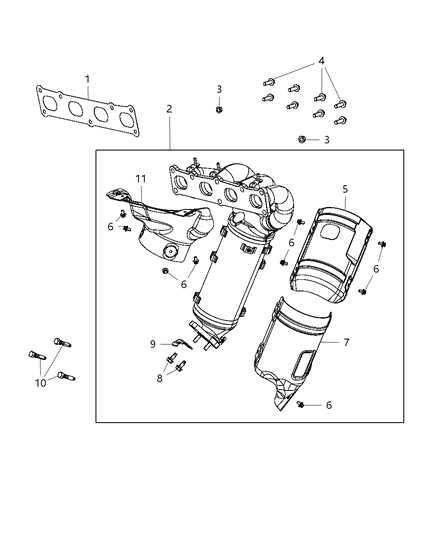

    2015 Dodge Dart Exhaust Manifold & Heat Shield Diagram 2 - Thumbnail
  • 3.2.4L Gas; Engine Exhaust Manifold And Heat Shields 2.4L [ED6]
    2015 Dodge Dart Exhaust Manifold & Heat Shield Diagram 3 - Thumbnail
  • 4.2.4L Gas; Engine Exhaust Manifold And Heat Shields 2.4L [ED8]
    2015 Dodge Dart Exhaust Manifold & Heat Shield Diagram 4 - Thumbnail
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
  • 1
    5047499AA
    Exhaust Manifold Gasket
    GASKET Exhaust Manifold
    • Fitting Vehicle Options: 41 - SEDAN/QUAD CAB SWB, D - DODGE, ECK - 4 Cyl 2.0L DOHC, ED6 - 4 Cyl 2.4L MultiAir, ED8 - 4 Cyl 2.4L PZEV MAir
    MSRP: $5.85 Your Price: $4.06
    1
    Add To Cart
  • 1
    52022302AD
    Exhaust Manifold Gasket
    GASKET Exhaust Manifold
    • Fitting Vehicle Options: 41 - SEDAN/QUAD CAB SWB, D - DODGE, EAF - 4 Cyl 1.4L MultiAir Turbo
    MSRP: $66.95 Your Price: $46.40
    1
    Add To Cart
  • 2 Dodge 6106322AA Lower Note Horn Bolt
    6106322AA
    Lower Note Horn Bolt
    BOLT Hex Flange Head M6X.00X14.00
    • Require Quantity: 3
    • Package Quantity: 1
    MSRP: $4.15 Your Price: $2.84
    1
    Add To Cart
  • 3
    1022510003
    Nut
    • Require Quantity: 2
    • Package Quantity: 1
    MSRP: $3.05 Your Price: $2.09
    1
    Add To Cart
  • 4
    6508185AA
    Bolt
    BOLT Hex Flange Head M10x1.25x30.00
    • Require Quantity: 6
    • Package Quantity: 1
    MSRP: $4.45 Your Price: $3.07
    1
    Add To Cart
  • 5
    6106163AA
    Tube Nut
    NUT Hex Flange Locking M6x1.00
    • Replaced By: 68318751AA
    MSRP: $2.10 Your Price: $1.45
    1
    Add To Cart
  • 5 Dodge 68190699AA Shield - Exhaust
    68190699AA
    Shield - Exhaust
    SHIELD Exhaust Front Pipe or Converter
    • Replaced By: 68393974AA
    MSRP: $63.75 Your Price: $42.92
    1
    Add To Cart
  • 6
    5133476AB
    Bolt
    BOLT Hex Flange Head M6X1.00X20.00
    • Mounting Heat Shield To Converter
    • Fitting Vehicle Options: 41 - SEDAN/QUAD CAB SWB, D - DODGE, ED8 - 4 Cyl 2.4L PZEV MAir
    • Require Quantity: 7
    • Package Quantity: 1
    MSRP: $6.75 Your Price: $4.70
    1
    Add To Cart
  • 6 Dodge 6104181AA Bolt
    6104181AA
    Bolt
    BOLT Hex Flange Head M6X1.00X20.00
    • Fitting Vehicle Options: 41 - SEDAN/QUAD CAB SWB, D - DODGE, ECK - 4 Cyl 2.0L DOHC, ED6 - 4 Cyl 2.4L MultiAir, ED8 - 4 Cyl 2.4L PZEV MAir
    • Require Quantity: 2
    • Package Quantity: 1
    • Replaced By: 5133476AB
    MSRP: $6.75 Your Price: $4.70
    1
    Add To Cart
  • 7 Dodge 68190700AA Shield - Exhaust
    68190700AA
    Shield - Exhaust
    SHIELD Exhaust Front Pipe or Converter
    • Replaced By: 68393986AA
    MSRP: $57.95 Your Price: $38.93
    1
    Add To Cart
  • 8
    6510392AA
    Heat Shield Bolt
    BOLT Hex Flange Head M6X1.00X13.00
    • Require Quantity: 2
    • Package Quantity: 1
    MSRP: $11.05 Your Price: $7.47
    1
    Add To Cart
  • 8
    6104197AA
    Bolt
    BOLT Hex Flange Head M8X1.25X25.00
    • Require Quantity: 2
    • Package Quantity: 1
    MSRP: $4.30 Your Price: $2.96
    1
    Add To Cart
  • 9
    4893056AB
    Spacer
    • Require Quantity: 9
    • Package Quantity: 1
    MSRP: $8.40 Your Price: $5.80
    1
    Add To Cart
  • 10
    6104197AA
    Bolt
    BOLT Hex Flange Head M8X1.25X25.00
    • Mounting Exhaust Manifold/Converter Assembly To Support Bracket
    MSRP: $4.30 Your Price: $2.96
    1
    Add To Cart
  • 10
    6104197AA
    Bolt
    BOLT Hex Flange Head M8X1.25X25.00
    • Mounting Exhaust Manifold/Converter Assembly To Support Bracket
    • Require Quantity: 2
    • Package Quantity: 1
    MSRP: $4.30 Your Price: $2.96
    1
    Add To Cart
  • 10
    6506619AA
    Wrench Nut
    NUT M8x1.25
    • Require Quantity: 9
    • Package Quantity: 1
    MSRP: $4.20 Your Price: $2.90
    1
    Add To Cart
  • 11
    68197575AA
    Heat Shield
    SHIELD Exhaust Front Pipe or Converter
    MSRP: $96.35 Your Price: $65.32
    1
    Add To Cart
