Diagram (1 of 1): Fuel Fuel Tank

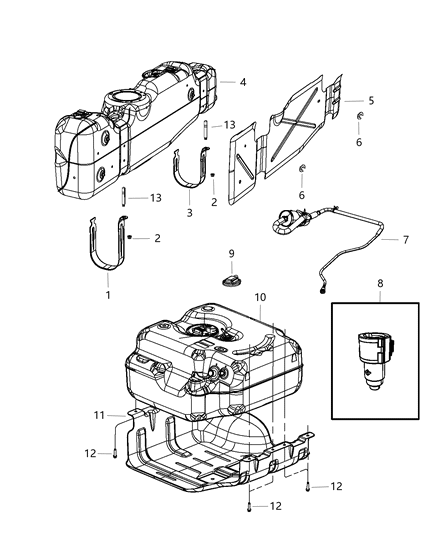

2012 Ram 3500 Cab Chassis Fuel Tank Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1

5031015AA
Strap - Fuel Tank
MSRP: $42.75 Your Price: $29.70
1
Add To Cart

2
6104717AA
Nut
NUT Hex Flange Lock M10x1.50
- Require Quantity: 2
- Package Quantity: 1
MSRP: $4.15 Your Price: $2.84
1
Add To Cart

3

5031013AA
Strap - Fuel Tank
MSRP: $46.15 Your Price: $32.07
1
Add To Cart

4
5031033AA
Tank - Fuel
TANK Fuel Without Heat Shield
- Replaced By: 68496625AC
MSRP: $1270.00 Your Price: $927.49
1
Add To Cart

5
5031027AC
Shield - Fuel Tank Heat
MSRP: $238.00 Your Price: $157.22
1
Add To Cart

7
5146467AA
Tube - Fuel Vapor
- Replaced By: 5146467AB
MSRP: $53.15 Your Price: $36.89
1
Add To Cart

8
52014053AA
Fuel Cap - Fuel Pump
CAP Fuel Pump Cap is for Auxilary Line that Connects to Fuel Tank. The Auxilary Line is Supplied so That Owners Can connect a Generator or Similar Device.
MSRP: $45.80 Your Price: $31.18
1
Add To Cart

9
52014013AA
Shield - Rollover Valve
COVER Rollover Valve
[NFH]
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0, EZ0
9
52014013AA
Shield - Rollover Valve
COVER Rollover Valve
- [NFA]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0
- Require Quantity: 2
- Package Quantity: 1

10
5032219AB
Tank - Fuel
TANK Fuel With Heat Shield
[NFH]
Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, EZ0
Replaced By: 68496609AB
MSRP: $1465.00 Your Price: $965.77
1
Add To Cart
10
68241434AA
Tank - Fuel
TANK Fuel With Heat Shield
- [NFH]
- Fitting Vehicle Options: 63 - REG CAB CHASSIS WHEEL BASE 1, 64 - REG CAB CHASSIS WHEEL BASE 2, 8 - HD DODGE 4WD, 93 - CREW CAB W.B.4, ET0
- Replaced By: 68496608AB
MSRP: $1325.00 Your Price: $967.01
1
Add To Cart

11
5031067AB
Skid Plate - Fuel Tank
MSRP: $927.00 Your Price: $611.07
1
Add To Cart

12
6104422AA
Bolt
BOLT AND WASHER Hex Head
- Require Quantity: 8
- Package Quantity: 1
MSRP: $4.40 Your Price: $2.96
1
Add To Cart

13
6508830AA
Stud - Double Ended
STUD Double Ended M10X1.50X60.00
- Require Quantity: 2
- Package Quantity: 1
MSRP: $21.60 Your Price: $14.85
1
Add To Cart
