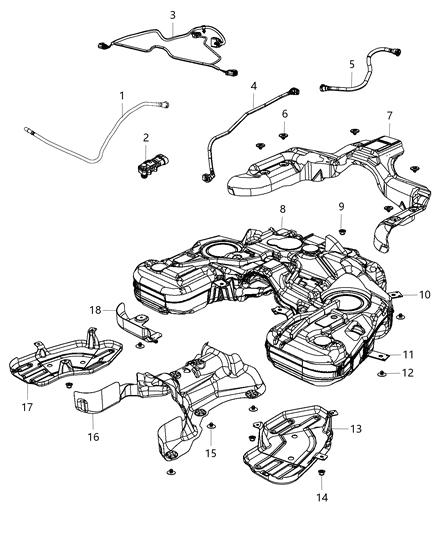

Diagram (1 of 1): Fuel Fuel Tank

2012 Jeep Grand Cherokee Fuel Tank Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
68142653AA
Hose - Fuel Return
- Replaced By: 68142653AB
MSRP: $40.40 Your Price: $27.96
1
Add To Cart

2
4593949AA
Natural Vacuum Leak Detection
SENSOR Fuel Vapor
- Replaced By: 68525698AA
MSRP: $90.00 Your Price: $59.99
1
Add To Cart

3
68154371AA
Fuel Tank Jumper
WIRING Fuel Tank Jumper
[XKN]
Fitting Vehicle Options: 74 - SPORT UTILITY 4-DR TYPE #4, ERB - 6 Cyl 3.6L VVT, ESG - 8 Cyl 6.4L SRT HEMI MDS, EZH - 8 Cyl 5.7L MDS VVT, J - JEEP - 4WD, T - JEEP - 2WD
Replaced By: 68212611AC
MSRP: $127.00 Your Price: $61.82
1
Add To Cart
3
68154390AA
Wiring - Fuel Tank Jumper
- Fitting Vehicle Options: 74 - SPORT UTILITY 4-DR TYPE #4, EXF, J - JEEP - 4WD, T - JEEP - 2WD
- Replaced By: 68212661AB

4
68142648AA
Hose - Fuel Supply
- Replaced By: 4578788AC
MSRP: $70.40 Your Price: $47.94
1
Add To Cart

5
68142649AA
Hose - Fuel Vapor
- Replaced By: 68212608AB
MSRP: $58.25 Your Price: $39.67
1
Add To Cart

6
68140488AA
Upper Shield Retainer
RETAINER Push Lock
- Require Quantity: 5
- Package Quantity: 1
MSRP: $5.50 Your Price: $3.77
1
Add To Cart

7
68140486AA
Upper Shield
SHIELD Fuel Tank Heat Upper
MSRP: $52.10 Your Price: $35.16
1
Add To Cart

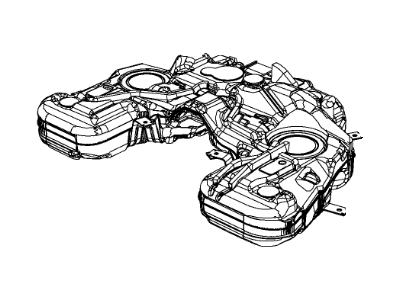

8
68154311AA
Tank - Fuel
[XKN]
Fitting Vehicle Options: 74 - SPORT UTILITY 4-DR TYPE #4, ERB - 6 Cyl 3.6L VVT, ESG - 8 Cyl 6.4L SRT HEMI MDS, EZH - 8 Cyl 5.7L MDS VVT, J - JEEP - 4WD, T - JEEP - 2WD
Replaced By: 68338691AC
MSRP: $860.00 Your Price: $565.76
1
Add To Cart

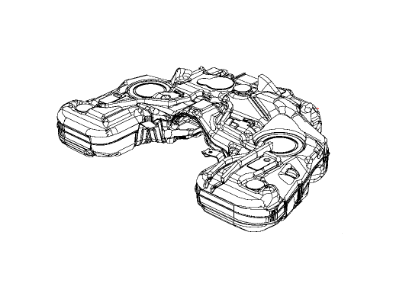

8
68140738AB
Tank - Fuel
- Fitting Vehicle Options: 74 - SPORT UTILITY 4-DR TYPE #4, EXF, J - JEEP - 4WD, T - JEEP - 2WD
- Replaced By: 68140738AF
MSRP: $309.00 Your Price: $207.34
1
Add To Cart

9

6505246AA
Nut - Hexagon
NUT AND WASHER Hex M6X1.00
MSRP: $5.45 Your Price: $3.65
1
Add To Cart

10
68148069AB
Strap - Fuel Tank
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4726070AB
MSRP: $64.75 Your Price: $43.59
1
Add To Cart

11
68148068AB
Strap - Fuel Tank
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4578793AC
MSRP: $64.75 Your Price: $43.59
1
Add To Cart

12
6508724AA
Bolt
SCREW AND WASHER Hex Head M10x1.5x40
- Require Quantity: 6
- Package Quantity: 1
MSRP: $7.35 Your Price: $4.93
1
Add To Cart

13
68061321AD
Skid Plate - Fuel Tank
- Replaced By: 68061321AE
MSRP: $411.00 Your Price: $199.14
1
Add To Cart

14
6101831
Nut
NUT Hex Flange M8x1.25
- Require Quantity: 2
- Package Quantity: 1
MSRP: $9.35 Your Price: $6.50
1
Add To Cart

15
68140489AA
Retainer
RETAINER Push Lock
- Require Quantity: 9
- Package Quantity: 1
MSRP: $3.40 Your Price: $2.26
1
Add To Cart

16
68140485AA
Shield - Fuel Tank Heat
SHIELD Fuel Tank Heat Lower
- Replaced By: 68140485AB
MSRP: $318.00 Your Price: $211.12
1
Add To Cart

17
68061320AD
Skid Plate - Fuel Tank
- Replaced By: 68061320AE
MSRP: $429.00 Your Price: $280.67
1
Add To Cart

18
68140487AA
Front Shield
SHIELD Fuel Tank
MSRP: $217.00 Your Price: $144.87
1
Add To Cart
