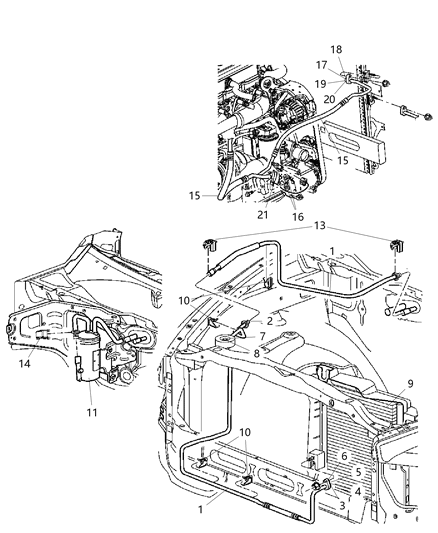

Diagram (1 of 1): Air Conditioners and Heaters A/C Plumbing

2009 Dodge Ram 3500 Pickup A/C Plumbing Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
55056808AA
A/C Line
LINE A/C Liquid
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
MSRP: $155.00 Your Price: $103.27
1
55056922AB
A/C Line
LINE A/C Liquid
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
MSRP: $184.00 Your Price: $123.50
1
Add To Cart
1
55056693AC
Line - A/C Liquid
- Jumper
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
- Replaced By: 55056693AD
MSRP: $172.00 Your Price: $115.57
1
Add To Cart

2
5142378AA
Liquid Line O-Ring
O RING A/C Line
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
Your Price: $14.57
1
Add To Cart
2
68024799AA
Liquid Line O-Ring
O RING A/C Line
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel

3

5073612AB
Discharge Line Gasket
SEAL
MSRP: $41.30 Your Price: $20.31
1
Add To Cart

4
5189362AA
Condenser Seal
SEAL Slim Line
MSRP: $21.90 Your Price: $14.57
1
Add To Cart

5
5093527AB
O Ring
- Replaced By: 68284925AA
MSRP: $15.05 Your Price: $10.32
1
Add To Cart

6
5189361AA
Suction Line O-Ring
O RING A/C Line
MSRP: $10.60 Your Price: $8.02
1
Add To Cart

7
5073613AA
Liquid Line Cap
CAP A/C Charge Valve
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
MSRP: $15.20 Your Price: $8.57
1
Add To Cart
7
5189364AA
Liquid Line Cap
CAP A/C Charge Valve
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel

8
5073614AA
Liquid Line Valve
VALVE CORE A/C Line
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
8
5189365AA
Valve - A/C Line
VALVE CORE A/C Line
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
- Replaced By: 5189365AB

9

55057095AA
Fan Assembly
CONDENSER A/C
MSRP: $561.00 Your Price: $418.32
1
Add To Cart

10
56021384
A/C Line Retainer Clip
CLIP
- Require Quantity: 2
- Package Quantity: 1
MSRP: $6.45 Your Price: $4.35
1
Add To Cart

11
55057016AA
Hose
ACCUMULATOR Air Conditioning
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
MSRP: $160.00 Your Price: $106.63
1
Add To Cart
11
55056758AC
Dehydrator
ACCUMULATOR Air Conditioning
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
MSRP: $296.00 Your Price: $199.41
1
Add To Cart

13

55056238AA
A/C Line Clip
CLIP A/C Quick Disconnect

14
55056239AA
A/C Line Retainer Clip
CLIP A/C Quick Disconnect
- Require Quantity: 2
- Package Quantity: 1

15
55056715AE
Suction Line
LINE A/C Suction & Discharge
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
15
55057015AC
Line - A/C Suction & Discharge
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
- Replaced By: 55057015AD

16
5093528AA
Seal - Slim Line
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
Require Quantity: 2
Package Quantity: 1
16
68037927AA
Seal - Slim Line
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
- Require Quantity: 2
- Package Quantity: 1

17
5093527AB
O Ring
- Replaced By: 68284925AA
MSRP: $15.05 Your Price: $10.32
1
Add To Cart

18
5189361AA
Suction Line O-Ring
O RING A/C Line
MSRP: $10.60 Your Price: $8.02
1
Add To Cart

19

5073612AB
Discharge Line Gasket
SEAL
MSRP: $41.30 Your Price: $20.31
1
Add To Cart

20
5189362AA
Condenser Seal
SEAL Slim Line
MSRP: $21.90 Your Price: $14.57
1
Add To Cart

21
5174039AB
Pressure Switch
VALVE A/C pressure Transducer
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
MSRP: $221.00 Your Price: $167.03
1
Add To Cart
21
5073617AA
Pressure Sensor
VALVE A/C pressure Transducer
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
MSRP: $282.00 Your Price: $188.08
1
Add To Cart

5161786AA
Fill Valve Cap
CAP A/C Charge Valve
MSRP: $4.80 Your Price: $3.25
1
Add To Cart

5073618AA
O Ring

5183358AA
Check Valve O-Ring
O RING A/C Line
MSRP: $24.55 Your Price: $16.88
1
Add To Cart

5003862AA
Check Valve
VALVE CORE A/C Line
Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETJ - 6 Cyl 6.7L Cummins Turbo Diesel
MSRP: $6.95 Your Price: $4.62
1
Add To Cart
5003461AA
Check Valve
VALVE CORE A/C Line
- Fitting Vehicle Options: 3 - HD DODGE 2WD, 41 - SEDAN/QUAD CAB SWB, 42 - PILLARED HARDTOP/QUAD CAB LWB, 62 - REG CAB 8 FT BOX, 8 - HD DODGE 4WD, 81 - Mega Cab, ETH - 6 Cyl 5.9L HO Cummins Turbo Diesel
MSRP: $31.95 Your Price: $22.04
1
Add To Cart
