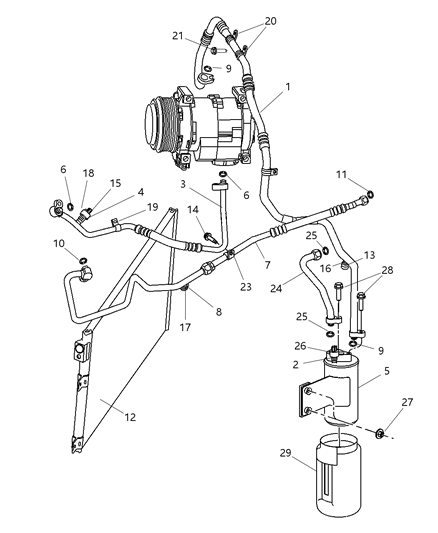

2008 Dodge Viper A/C Plumbing

O RING

LINE A/C Discharge

ACCUMULATOR Air Conditioning

CAP A/C Charge Valve

O RING A/C Line

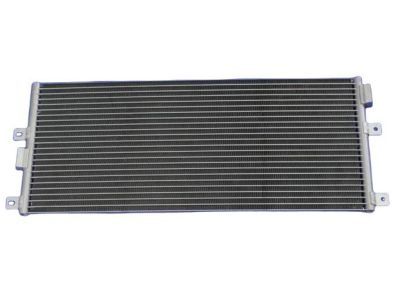

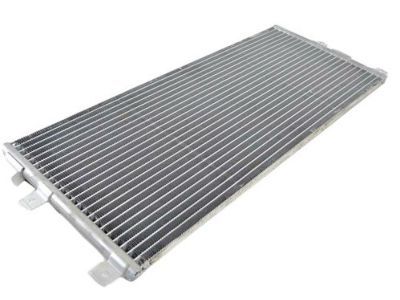

CONDENSER Air Conditioning

CAP A/C Check Valve

SCREW A/C Line attach to Frame

VALVE CORE A/C Line

VALVE CORE A/C Line

VALVE CORE A/C Line

TRANSDUCER Air Conditioning

CLIP A/C Line

LINE A/C Suction

O RING A/C Line

SWITCH A/C Low Pressure Cut Off

NUT AND WASHER Hex Nut-Sealing Washer M6 x 1.00 Accumulator attaching

SCREW AND WASHER Hex Head M8x1.25x30 Line to Accumulator

SHIELD Heat
