2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

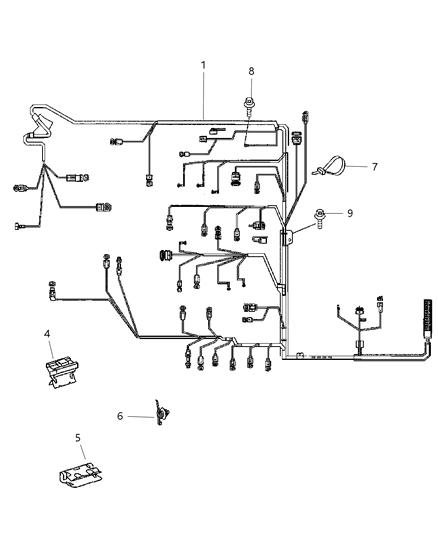

- 1.Electrical Engine Wiring Harness [EG2]

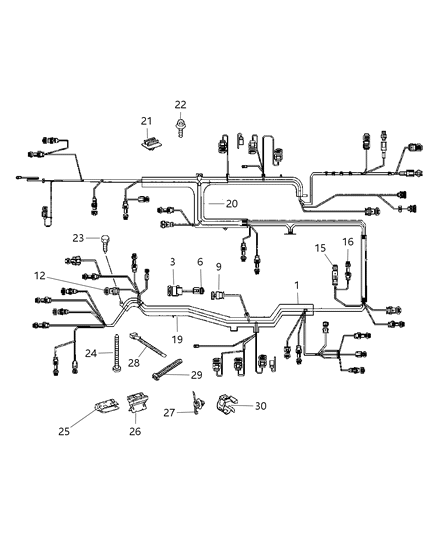

- 2.Electrical Engine Wiring Harness [EXM]
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
68011857AA
WIRING Engine- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
- 168012488AA
WIRING Engine- Without [HBD]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- Replaced By: 68039701AA
- 168015048AA
WIRING Engine- With [HBD]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- Replaced By: 68039701AA
- 3
- 4
- 5
- 6
- 6
- 7
- 8
- 9
- 9
- 12
- 15
- 16
- 19
- 20
- 21
- 22
6104004AA
BOLT- Harness To Cylinder Cover [M6x12]
- Fitting Vehicle Options: 13 - 119 WB, 15 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 53 - 119 WB, 55 - WAGON WHEEL BASE 5, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- Require Quantity: 2
- Package Quantity: 1
$10.00 $6.901
- 23
- 24
- 25
- 26
- 27
- 28
- 295080475AB
STRAP Tie- [4.6x279 MM]
- Fitting Vehicle Options: 13 - 119 WB, 15 - VAN WHEEL BASE, 17 - VAN WHEEL BASE, 2 - Med. Duty DODGE 2WD, 53 - 119 WB, 55 - WAGON WHEEL BASE 5, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- Require Quantity: 3
- Package Quantity: 1
- Replaced By: 6104762AB
- 29
- 30
- 68011060AA
GASKET- [4.0 MM2; X26]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
- Require Quantity: 99
- Package Quantity: 1
$143.00 $92.571
- 5120865AA
SEAL Wiring- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- 5161599AA
SEAL Wiring- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
68011877AA
TERMINAL- [X205] Terminal
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
$9.25 $6.441
68011878AA
TERMINAL- [X205]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
68011882AA
TERMINAL- [0.75 - 1.0 MMS; X26]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
- 68011883AA
TERMINAL- [1.5 - 2.5 MM2; X26]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
- 68011883AA
TERMINAL- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
- 68005411AA
WIRING- Starter / Generator Harness
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EG2 - 6 Cyl 3.5L, L - LOWLINE
- Replaced By: 68087490AA
$95.65 $83.331 - 68005413AA
WIRING- Starter / Genarator Harness / With [BAJ]
- Fitting Vehicle Options: 2 - Med. Duty DODGE 2WD, 6 - Lt. Duty DODGE 4WD, EXM - 6 Cyl 3.0L Turbo Diesel, L - LOWLINE
- Replaced By: 68087499AA
$92.75 $80.841
