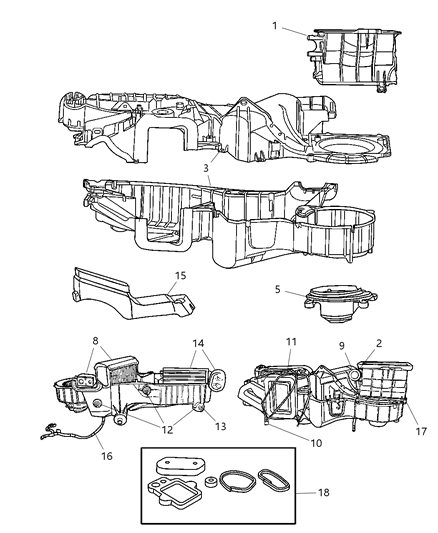

Diagram (1 of 1): Air Conditioning & Heater Air Conditioning and Heater Unit

2005 Chrysler PT Cruiser Air Conditioning & Heater Unit Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5017664AA
Air Inlet Assembly
HOUSING Air Inlet Contains Door-Recirc, Levers, Retainer, Screw, Nut, Seal

2
4885338AA
Actuator
ACTUATOR EGR Vacuum

3
5142885AA
Housing - A/C And Heater
HOUSING A/C And Heater Contains Doors, Cam, Levers, Link, Screws, Washers, Gaskets. Items 4 - 7
Fitting Vehicle Options: C - CHRYSLER, EDT - 4 Cyl 2.4L DOHC Turbo, EDV - 4 Cyl 2.4L DOHC H.O. Turbo
3
5142886AA
Case Assembly
HOUSING A/C And Heater Contains Doors, Cam, Levers, Link, Screws, Washers, Gaskets. Items 4 - 7
- Fitting Vehicle Options: C - CHRYSLER, EDJ, EDZ - 4 Cyl 2.4L DOHC SMPI, EJD
MSRP: $376.74 Your Price: $297.19
1
Add To Cart

5
5017666AB
Motor - Blower With Wheel
- Replaced By: 5017666AC
MSRP: $356.00 Your Price: $241.33
1
Add To Cart

8
5139813AA
Evaporator Core
EVAPORATOR Air Conditioning Includes Liners and Evaporator Tube Grommet

9
4885338AA
Actuator
ACTUATOR EGR Vacuum

10
4885339AA
Vacuum Harness
HARNESS A/C And Heater Vacuum

11

6101308
Nut
NUT U M6x1.00 Harness
MSRP: $6.20 Your Price: $4.18
1
Add To Cart

12
4734392
Housing Assembly Stud
STUD A/C Heater Housing
- Require Quantity: 3
- Package Quantity: 1
MSRP: $3.70 Your Price: $2.55
1
Add To Cart

13
5061426AA
Housing Assembly Washer
WASHER A/C Unit Mounting Stud
- Require Quantity: 3
- Package Quantity: 1
MSRP: $3.00 Your Price: $2.05
1
Add To Cart

14
4734453
Core - Heater
CORE Heater with Seals
- Replaced By: 5174809AA

15
5017668AA
Floor Duct
DUCT A/C And Heater

16
4671712AA
Wire Harness
WIRING A/C and HEATER
Fitting Vehicle Options: C - CHRYSLER, EDT - 4 Cyl 2.4L DOHC Turbo, EDV - 4 Cyl 2.4L DOHC H.O. Turbo
16
4794913AA
Wiring - A/C And Heater
- Fitting Vehicle Options: C - CHRYSLER, EDJ, EDZ - 4 Cyl 2.4L DOHC SMPI, EJD

17
4734227
Screw
SCREW Hex Head M4.8-1.59x19
- Require Quantity: 28
- Package Quantity: 1
MSRP: $4.30 Your Price: $2.85
1
Add To Cart

18
5015289AB
Seal Kit - A/C And Heater Unit
SEAL KIT A/C And Heater Unit Includes: Plate Dash, Panel/Demister Opening, Demister Opening, Drain Tube, Evap. to Dash, 3-Unit Seals, Air Inlet
Fitting Vehicle Options: C - CHRYSLER, ECC, EDJ, EDZ - 4 Cyl 2.4L DOHC SMPI, EJD
Replaced By: 5015289AC
18
5015289AC
Seal Kit
SEAL KIT A/C And Heater Unit Includes: Plate Dash, Panel/Demister Opening, Demister Opening, Drain Tube, Evap. to Dash, 3-Unit Seals, Air Inlet
- Fitting Vehicle Options: C - CHRYSLER, EDT - 4 Cyl 2.4L DOHC Turbo, EDV - 4 Cyl 2.4L DOHC H.O. Turbo

4644388
Clip
CLIP A/C Heater Housing
- Require Quantity: 2
- Package Quantity: 1

5058026AA
Resistor - Blower Motor
- Replaced By: 5058026AB
MSRP: $32.05 Your Price: $21.68
1
Add To Cart

6101818
Screw
MSRP: $4.40 Your Price: $2.96
1
Add To Cart

5102964AA
Wire Harness
WIRING A/C and HEATER Motor
MSRP: $9.90 Your Price: $6.04
1
Add To Cart
