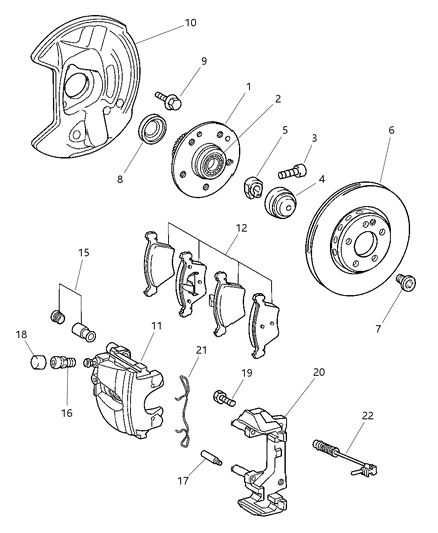

Diagram (1 of 1): Service Brakes Brakes, Front

2005 Chrysler Crossfire Front Brakes Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
5099235AA
Front Hub & Bearing
HUB Front Wheel
- Without ABS
MSRP: $1390.00 Your Price: $907.21
1
Add To Cart

2
5097737AA
Wheel Bearing
BEARING Wheel Hub
Inner
MSRP: $128.00 Your Price: $84.51
1
Add To Cart
2
5097738AA
Bearing - Wheel Hub
- Outer
- Replaced By: 5143129AA
MSRP: $128.00 Your Price: $84.51
1
Add To Cart

3
5104617AA
Screw

4
5101732AA
Cap
CAP Wheel Bearing
MSRP: $30.09 Your Price: $23.74
1
Add To Cart

5

5097843AA
Lock Nut
NUT

6
2AMV8064AA
Rotor - Brake
Magneti Marelli
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, P - PREMIUM, S - SPORT
Replaced By: 1BP00084AA
MSRP: $115.00 Your Price: $59.04
1
Add To Cart
6
5098064AA
Rotor - Brake
- Right or Left [EGX]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, P - PREMIUM, S - SPORT
- Replaced By: 5098064AC
MSRP: $398.00 Your Price: $268.52
1
Add To Cart
6
5135475AA
Rotor - Brake
- Right or Left [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
- Replaced By: 5135475AC
MSRP: $284.00 Your Price: $192.61
1
Add To Cart
6
V5018064AA
Brake
ROTOR Brake
- Mopar V-Line Alternative Brake Rotors
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, P - PREMIUM, S - SPORT
- Replaced By: 1BP00084AA
MSRP: $115.00 Your Price: $76.94
1
Add To Cart

7
5097539AA
Rotor Mount Bolt
BOLT Brake Mounting

8

5099837AA
Hub Seals
SEAL Hub
MSRP: $59.35 Your Price: $40.36
1
Add To Cart

10
5096878AA
Backing Plate
PLATE Backing
Right [EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, P - PREMIUM, S - SPORT
10
5096879AA
Backing Plate
PLATE Backing
- Left [EGX]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, P - PREMIUM, S - SPORT
10
5135478AA
Backing Plate
PLATE Backing
- Right [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
MSRP: $57.64 Your Price: $45.47
1
Add To Cart
10
5135479AA
Backing Plate
PLATE Backing
- Left [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

11
5139586AA
Caliper
CALIPER Disc Brake
Right [EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
11
5139587AA
Caliper
CALIPER Disc Brake
- Left [EGX]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
11
5143224AA
Caliper
CALIPER Disc Brake
- Right [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
11
5143225AA
Caliper
CALIPER Disc Brake
- Left [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

12
5139218AA
Pad Kit - Front Disc Brake
[EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
Replaced By: 5139218AB
MSRP: $375.00 Your Price: $247.52
1
Add To Cart
12
5143230AA
Brake Pads
PAD KIT Front Disc Brake
- [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

15
5114556AA
Caliper Bushing
BUSHING Caliper
[EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
MSRP: $17.45 Your Price: $13.77
1
Add To Cart
15
5143223AA
Caliper Bushing
BUSHING Caliper
- [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

16
5114565AB
Screw - Brake
BLEEDER SCREW Brake
[EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
16
5143226AA
Bleeder Valve
BLEEDER SCREW Brake
- [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

17
5096906AA
Sleeve - Brake Caliper
- Require Quantity: 2
- Package Quantity: 1

19
5097199AA
Bolt - Hexagon Head
BOLT Hex Head
- Require Quantity: 2
- Package Quantity: 1
MSRP: $5.75 Your Price: $4.54
1
Add To Cart

20
5143221AA
Adapter
ADAPTER Disc Brake Caliper
Right or Left [EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
20
68002760AA
Adapter - Disc Brake Caliper
- Right [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, C - CHRYSLER, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
20
68002761AA
Adapter - Disc Brake Caliper
- Left [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

21
5114564AA
Retainer - Brake Caliper
CLIP Brake Caliper
[EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
21
5143227AA
Retainer - Brake Caliper
CLIP Brake Caliper
- [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL

22
5099878AA
Wear Indicator
SENSOR Brake wear
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, P - PREMIUM, S - SPORT
22
5101062AA
Sensor - Brake Wear
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
MSRP: $6.00 Your Price: $4.73
1
Add To Cart

5103632AA
Pin - Disc Brake
PIN KIT Disc Brake
[EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
MSRP: $7.75 Your Price: $6.11
1
Add To Cart
5143228AA
Pin - Disc Brake
PIN KIT Disc Brake
- [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
MSRP: $3.95 Your Price: $3.12
1
Add To Cart

5126318AA
Repair Kit
REPAIR KIT Caliper
[EGX]
Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DED - 6-Speed Manual Transmission, DGU - 5-Speed Automatic Transmission W5A330, EGX - 6 Cyl 3.2L SOHC 18 Valve, S - SPORT
5143229AA
Caliper
REPAIR KIT Caliper
- [EGZ]
- Fitting Vehicle Options: 27 - 2-DR CONVERTIBLE, 29 - SPECIALTY COUPE, DGJ - 5-Speed Automatic Transmission W5A580, EGZ - 6 Cyl 3.2L Supercharged, X - SPECIAL
- Replaced By: 5143229AB
