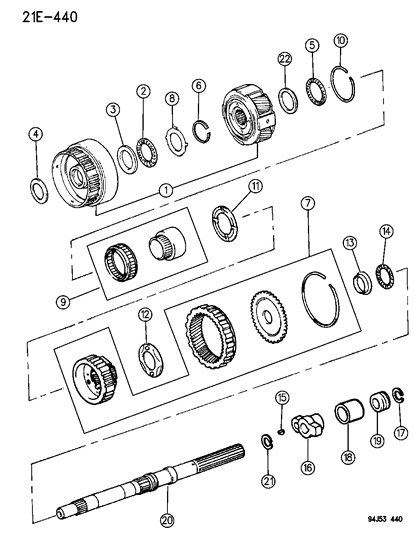

1994 Jeep Cherokee Gear Train & Output Shaft

GEAR, Front Planetary

SNAP RING, Frt. Annulus Gear Support, 1-3/8" I.D.

WASHER, Frt. Annulus Gear Support, Thrust w/Lip, Steel Backed Bronze 2-1/8" O.D.

SUPPORT, w/Bushing, Frt. Annulus Gear

WASHER, Front Carrier Thrust, 2-5/8" I.D., w/4 Tabs I.D.

SPACER, Sun Gear, 4 Inner Teeth, 2" O.D.

CLUTCH, One Way No. 2

PLATE, Sun Gear Driving Shell, Thrust

GEAR, w/Bushing, Sun 38T-28T

SNAP RING

SHELL, Sun Gear Driving

WASHER

Plate, Output Shaft Thrust, Flat 1-3/8" Dia., .060" Thick

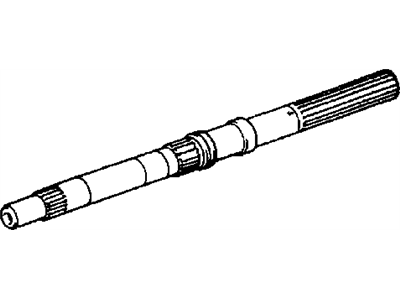

SHAFT, w/Plug, Output

LOCK RING, Sun Gear Driving Shell, 1-41/64" O.D.

WASHER, Rr. Planet Pinion Carrier Thrust, 2" I.D., w/4 Tabs, O.D.

CARRIER ASSEMBLY, Rear Planet Pinion

SUPPORT, Rr. Annulus Gear, 62T, 28T, 4" O.D.

GEAR, Speedometer Drive, 2WD

SNAP RING, Rr. Annulus Gear, 4-1/16" O.D.

RING, Reverse Drum Retaining

SCREW, Cam to Case, 1/4-28 x 7/8"

SEAL, Oil Ring

DRUM, Reverse

RACE, Thrust Bearing, Rear

CAM, "O" Running Clutch

CLUTCH ASSEMBLY, "O" Running, w/12 Rollers, Springs and Retainer

PLATE, Frt. Annulus Gear Support Thrust, 2.168" O.D., 1.515" I.D., .030" Thk.
