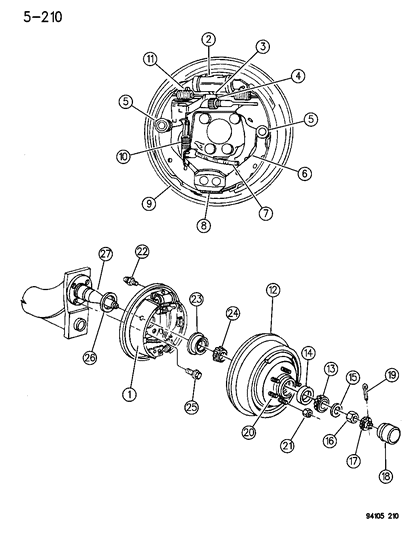

Diagram (1 of 1): BRAKES, SERVICE BRAKES, REAR DRUM P BODY

1994 Dodge Shadow Brakes, Rear Drum Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
BHKH2613
SHOE and LINING PACKAGE
Mopar V-Line Alternative Part Drum Self Adjuster Kit
1
BHKH2612
SHOE and LINING PACKAGE
- Mopar V-Line Alternative Part Drum Self Adjuster Kit Left
1
BHKH7263
SHOE and LINING PACKAGE
- Mopar V-Line Alternative Part All In One Drum Combi Kits

2
4762296
CYLINDER, Rear Wheel Brake, Complete
CYLINDER, Rear Wheel Brake, Complete
Require Quantity: 2
Package Quantity: 1
2
6028921
CYLINDER, Rear Wheel Brake, Complete
- SCREW, Cyl. Mtg.
2
V2102296AA
CYLINDER, Rear Wheel Brake, Complete
- Mopar V-Line Alternative Part Wheel Cylinder

4
4238721
SCREW, Auto. Adjuster, Right
PLUG, Rear Wheel Brake Adj. Hole
Require Quantity: 2
Package Quantity: 1
$9.85 $6.79
1
Add To Cart
4
4238728
SCREW, Auto. Adjuster, Right
- TUBE, Rear Wheel Brake Adj.
- Require Quantity: 2
- Package Quantity: 1
4
4238770
SCREW, Auto. Adjuster, Right
- SOCKET, Auto Adjust Screw
- Require Quantity: 2
- Package Quantity: 1

5
4238732
RETAINER, Brake Shoe Hold Down Spring
RETAINER, Brake Shoe Hold Down Spring
Require Quantity: 4
Package Quantity: 1
5
4238733
RETAINER, Brake Shoe Hold Down Spring
- PIN, Brake Shoe Hold Down Spring
- Require Quantity: 4
- Package Quantity: 1

6
4238715
LEVER and PIN, Parking Brake, Right
WASHER, Parking Brake Lever Pin Wave
Require Quantity: 2
Package Quantity: 1
6
4238716
LEVER and PIN, Parking Brake, Right
- CLIP, Parking Brake Lever Pin Ret.
- Require Quantity: 2
- Package Quantity: 1

8
4238730
SPRING, Lower Shoe Return
- Require Quantity: 2
- Package Quantity: 1

10
4238851
SPRING, Auto. Adjuster Lever
- Require Quantity: 2
- Package Quantity: 1

13
3683974
BEARING PACKAGE, Outer
- Require Quantity: 2
- Package Quantity: 1

15
600194
WASHER, Brg. Thrust
- Require Quantity: 2
- Package Quantity: 1

16
6029692
NUT, Brg. Adjust
- Require Quantity: 2
- Package Quantity: 1

17
1673324
LOCK, Brg. Nut
- Require Quantity: 2
- Package Quantity: 1

18
3580894
CAP, Grease
- Require Quantity: 2
- Package Quantity: 1

20
5204272
STUD
- Replaced By: 5204272AB
$21.45 $14.79
1
Add To Cart

21
6502738
NUT, Std.
NUT, Chrome
Replaced By: 6509769AA
$5.35 $3.71
1
Add To Cart
21
6500526
NUT, Std.
- NUT, Std.

22
4238717
SCREW, Bleeder
CAP, Bleeder Screw
Require Quantity: 2
Package Quantity: 1
Replaced By: 68338711AA
$7.25 $4.93
1
Add To Cart
22
3766674
SCREW, Bleeder
- SCREW, Bleeder
- Require Quantity: 2
- Package Quantity: 1

23
4238570
SEAL, Dust
- Require Quantity: 2
- Package Quantity: 1

24
4238567
CONE, CUP and BEARING PACKAGE
- Require Quantity: 2
- Package Quantity: 1

26
4238853
SEAL, Support
- Require Quantity: 2
- Package Quantity: 1

27

4636732
SPINDLE, Rear Wheel Mtg. (See Group 17)
