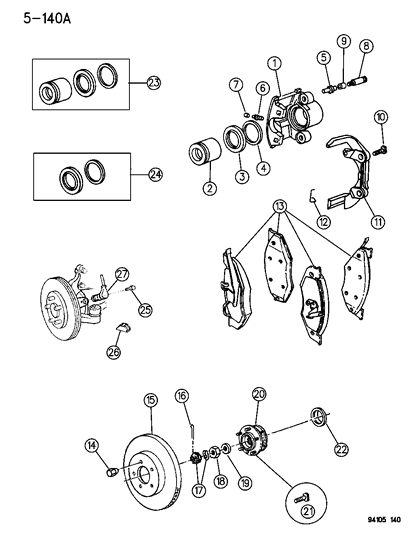

Diagram (1 of 1): BRAKES, SERVICE BRAKES, FRONT W/REAR DISC BRAKES J BODY

1994 Chrysler LeBaron GTC Brakes, Front With Rear Disc Brakes Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
4423716
Caliper Assembly
CALIPER ASSEMBLY, Front Wheel Disc Brake Partial (Casting No.122249-01) , Right
- European, (Cast No. 123919-01), Right
1
R4423717
Caliper - Left Side Body W/15" Wheels
CALIPER ASSEMBLY, Front Wheel Disc Brake Partial (Casting No.122249-01) , Right
- REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
1
R5273006
Caliper
CALIPER ASSEMBLY, Front Wheel Disc Brake Partial (Casting No.122249-01) , Right
- REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part
1
R5273007
Left A, P, G , & J - Body
CALIPER ASSEMBLY, Front Wheel Disc Brake Partial (Casting No.122249-01) , Right
- REMAN, Door, REMAN ENGINES - Mopar Remanufactured Part

2
4423572
Caliper Piston
PISTON, (Also Serviced in Item 23)
- PISTON, (Also Serviced in Item 23)
- Require Quantity: 2
- Package Quantity: 1

5
4383471
Caliper Bushing
BUSHING
- Require Quantity: 4
- Package Quantity: 1
MSRP: $13.35 Your Price: $9.22
1
Add To Cart

6
3780788
Screw - Bleeder
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 5015248AB
MSRP: $30.30 Your Price: $20.88
1
Add To Cart

8
4423639
Pin - Caliper
BOLT, Frt. Wheel Brake Locating Sleeve
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 4423639AB
MSRP: $17.55 Your Price: $12.12
1
Add To Cart

9
4423573
Sleeve - Disc Brake Caliper
SLEEVE, Front Wheel Disc Brake Locating
- Require Quantity: 4
- Package Quantity: 1
- Replaced By: 5018238AB
MSRP: $18.55 Your Price: $12.76
1
Add To Cart

12
4423443
Clip - Front Wheel Disc Brake Anti-Rattle
CLIP, Disc Brake Caliper Anti-Rattle
- Require Quantity: 2
- Package Quantity: 1

13
4423812
Front Pads
SHOE and LINING PACKAGE, Front Wheel Disc Brake
- European
13
BHKH5066
Calibrate Bolts - Hexagon Flange Head
SHOE and LINING PACKAGE, Front Wheel Disc Brake
- Mopar V-Line Alternative Part Caliper Bolts
13
BHKH5607
Disc Package - Front Brake
SHOE and LINING PACKAGE, Front Wheel Disc Brake
- Mopar V-Line Alternative Part Disc Hardware
13
V1011822
Pad Kit - Front Wheel Disc Brake
SHOE and LINING PACKAGE, Front Wheel Disc Brake
- Mopar V-Line Alternative Part
13
V1012812AC
Pad Kit - Front Dis Brake
SHOE and LINING PACKAGE, Front Wheel Disc Brake
- Mopar V-Line Alternative Part

14
6502738
Wheel Nut
NUT, Wheel
- NUT, Wheel (Chrome)
- Require Quantity: 20
- Package Quantity: 1
- Replaced By: 6509769AA
MSRP: $5.65 Your Price: $3.89
1
Add To Cart
14
6500526
Wheel Nut
NUT, Wheel
- NUT, Wheel
- Require Quantity: 20
- Package Quantity: 1

15
4383968
Brake Rotor
DISC , Front Wheel Brake (11.00" Diameter)
- DISC , Front Wheel Brake (11.00" Diameter)
- Require Quantity: 2
- Package Quantity: 1
15
4383973
Rotor
DISC , Front Wheel Brake (11.00" Diameter)
- European
- Require Quantity: 2
- Package Quantity: 1
15
V5013968AA
Rotor - Brake
DISC , Front Wheel Brake (11.00" Diameter)
- Mopar V-Line Alternative Brake Rotors
15
VAJ12715AA
Pad Kit - Front Brake
DISC , Front Wheel Brake (11.00" Diameter)
- Make It New Brake Kits

16
6500336
Pin
COTTER PIN, Front Axle Hub Nut Lock
- Require Quantity: 2
- Package Quantity: 1

17
4293167
Lock/Nut Package
LOCKNUT & WASHER PACKAGE
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4293167AB
MSRP: $25.75 Your Price: $17.86
1
Add To Cart

18
6500298
Nut
NUT, Hub
- Require Quantity: 2
- Package Quantity: 1
MSRP: $6.60 Your Price: $2.44
1
Add To Cart

21
6501053
Wheel Stud
BOLT

22
5212535
Wheel Seal
SEAL
- Require Quantity: 2
- Package Quantity: 1

24
4364781
Seal Kit
BOOT and SEAL PACKAGE
- European
- Require Quantity: 2
- Package Quantity: 1

25
6101419
Bolt - Hexagon Head
BOLT, Frt Wheel Speed Sensor Mounting
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 6102403AA
MSRP: $5.15 Your Price: $3.48
1
Add To Cart
