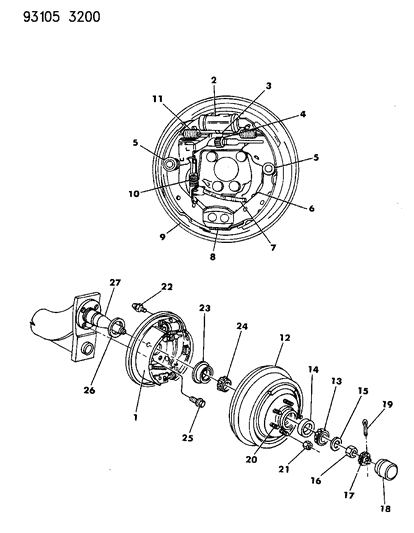

Diagram (1 of 1): BRAKES, SERVICE BRAKES, REAR DRUM G BODY

1993 Dodge Daytona Brakes, Rear Drum Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

2
6028921
Screw - Hexagon Head
CYLINDER, Rear Wheel Brake, Complete
SCREW, Cyl. Mtg.
2
V2102296AA
Wheel Cylinder - Wheel
CYLINDER, Rear Wheel Brake, Complete
- Mopar V-Line Alternative Part Wheel Cylinder
2
V2104425AA
Wheel Cylinder - Wheel
CYLINDER, Rear Wheel Brake, Complete
- Mopar V-Line Alternative Part Wheel Cylinder

3
4238765
Lever Parking Brake Adjusting
LEVER, Auto. Adjuster, Right
- LEVER, Auto. Adjuster, Left

4
4238721
Plug - Brake Adjusting Hole
SCREW, Auto. Adjuster, Right
- PLUG, Rear Wheel Brake Adj. Hole
- Require Quantity: 2
- Package Quantity: 1
MSRP: $10.20 Your Price: $7.02
1
Add To Cart

5
4238732
Retainer - Brake Shoe Hold Down
RETAINER, Brake Shoe Hold Down Spring
RETAINER, Brake Shoe Hold Down Spring
Require Quantity: 4
Package Quantity: 1
MSRP: $2.23 Your Price: $1.76
1
Add To Cart
5
4238771
Pin - Brake Shoe Hold Down
RETAINER, Brake Shoe Hold Down Spring
- PIN, Brake Shoe Hold Down Spring
- Require Quantity: 4
- Package Quantity: 1
MSRP: $2.23 Your Price: $1.76
1
Add To Cart

6
4238715
Washer
LEVER and PIN, Parking Brake, Right
WASHER, Parking Brake Lever Pin Wave
Require Quantity: 2
Package Quantity: 1
6
4238716
Retainer - Parking Brake Pin Lever
LEVER and PIN, Parking Brake, Right
- CLIP, Parking Brake Lever Pin Ret.
- Require Quantity: 2
- Package Quantity: 1

8
4238730
Spring - Brake Shoe Return
SPRING, Lower Shoe Return
- Require Quantity: 2
- Package Quantity: 1

10
4238851
Spring - Brake Auto Adjuster Lever
SPRING, Auto. Adjuster Lever
- Require Quantity: 2
- Package Quantity: 1

13
3683974
Wheel Bearing
BEARING PACKAGE, Outer
- Require Quantity: 2
- Package Quantity: 1
MSRP: $23.14 Your Price: $18.25
1
Add To Cart

15
600194
Thrust Washer
WASHER, Brg. Thrust
- Require Quantity: 2
- Package Quantity: 1

16
6029692
Nut
NUT, Brg. Adjust
- Require Quantity: 2
- Package Quantity: 1
MSRP: $18.75 Your Price: $14.57
1
Add To Cart

17
1673324
Nut
LOCK, Brg. Nut
- Require Quantity: 2
- Package Quantity: 1
MSRP: $5.42 Your Price: $4.27
1
Add To Cart

18
3580894
Dust Cap
CAP, Grease
- Require Quantity: 2
- Package Quantity: 1

20
5204272
Stud - Wheel
STUD
- Replaced By: 5204272AB
MSRP: $22.15 Your Price: $14.93
1
Add To Cart

21
6500526
Wheel Nut
NUT, Std.
- NUT, Std.
MSRP: $18.75 Your Price: $14.57
1
Add To Cart

22
4238717
Cap - Bleeder
SCREW, Bleeder
CAP, Bleeder Screw
Require Quantity: 2
Package Quantity: 1
Replaced By: 68338711AA
MSRP: $7.55 Your Price: $5.10
1
Add To Cart
22
3766674
Screw - Bleeder
- SCREW, Bleeder
- Require Quantity: 2
- Package Quantity: 1
