2 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

1.TRANSMISSION, MANUAL & TRANSFER CASE GEAR TRAIN N.P.G. MODEL 231,NON SYNCHRONIZED N5 - 1993

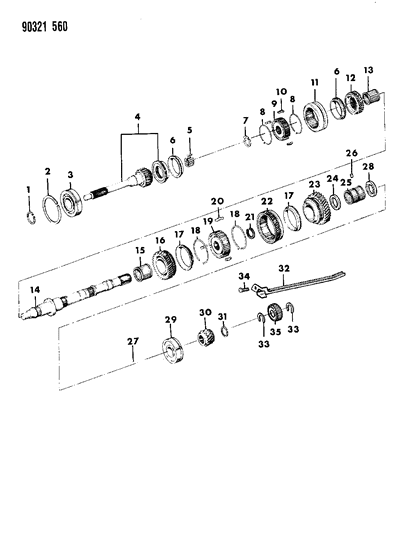

2.TRANSMISSION, MANUAL & TRANSFER CASE GEAR TRAIN, FIVE SPEED TRANSMISSION AISIN - MODEL AX 15 1992 - 1993 B, N1, N5

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
83506099
Ring
SNAP RING, Input Shaft Bearing
Stamped A (X=2.10mm/2.15mm)
1
83506214
Ring
SNAP RING, Input Shaft Bearing
- Stamped B (X=2.15mm/2.20mm)
1
83506215
Ring
SNAP RING, Input Shaft Bearing
- Stamped C (X=2.20mm/2.25mm)
1
83506216
Ring
SNAP RING, Input Shaft Bearing
- Stamped D (X=2.25mm/2.30mm)
1
83506217
Ring
SNAP RING, Input Shaft Bearing
- Stamped E (X=2.30mm/2.35mm)
1
83506218
Ring
SNAP RING, Input Shaft Bearing
- Stamped F (2.35mm/2.40mm)
1
83506219
Ring
SNAP RING, Input Shaft Bearing
- Stamped G (X=2.40mm/2.45mm)

2
83506222
Ring
SNAP RING, Input Bearing, Case

3
83506074
Bearing - Input Shaft
BEARING, Input Shaft(92mmODx25.5mmWD)

3

4338973
Extension - Transfer Case
RETAINER
MSRP: $69.05 Your Price: $26.63
1
Add To Cart

4

4210603
Seal - Main Shaft
SEAL, Oil
MSRP: $28.05 Your Price: $16.21
1
Add To Cart

4
4636370
Shaft Transmission
SHAFT, Input, Sub Assy Input

5
83506078
Bearing - Input Shaft
BEARING, Input, Needle Roller, (36.4mmODx24mmWD)

5

4338936
Pump - Transfer Case Oil
PUMP ASSEMBLY, Oil

6
4338892
Bearing
BEARING, Mainshaft, Rear and Output Shaft Front, 1-3/16" I.D. - 2-3/8" O.D.
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 4338892AB
MSRP: $111.00 Your Price: $54.36
1
Add To Cart

7
4446478
Snap Ring
RING, Bearing Retaining

7
83506086
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
Stamped A (X=1.80mm/1.85mm)
7
83506087
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
- Stamped B (X=1.85mm/1.90mm)
7
83506088
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
- Stamped C (X=1.90mm/1.95mm)
7
83506089
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
- Stamped D (X=1.95mm/2.00mm)
7
83506090
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
- Stamped E (X=2.00mm/2.05mm)
7
83506091
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
- Stamped F (X=2.05mm/2.10mm)
7
83506092
Ring
SNAP RING, Output Shaft, 3rd & 4th Synchronizer
- Stamped G (X=2.10mm/2.15mm)

8
4338913
Bearing Needle
BEARING, Input Needle

8
83506255
Spring - Synchronizer Key
SPRING, Synchronizer

9
4338909
Ring
RING, Planetary Carrier, Lock
- Replaced By: 5019579AA
MSRP: $23.50 Your Price: $15.90
1
Add To Cart

9
83506248
Hub - Synchronizer
SYNCHRONIZER, 3rd AND 4th Gear

10
53006087
Gear Trim/Case Complete
GEAR, Planetary, Low Range

10
83506251
Key - Synchronizer
KEY, Synchronizer, No. 2
- Require Quantity: 3
- Package Quantity: 1
MSRP: $5.00 Your Price: $3.95
1
Add To Cart

11
4338908
Washer - Planetary Carrier
WASHER, Input Gear, Planetary Carrier Thrust
- Require Quantity: 2
- Package Quantity: 1
MSRP: $15.70 Your Price: $10.79
1
Add To Cart

12
5252079
Gear Third

13
83506077
Bearing - Third Gear
BEARING, Needle, 3rd Gear, (3.85mmODx36.2mmWD)

13
4338972
Retainer
RETAINER, Assembly

14
83506243
Shaft - Output

15
83506076
Bearing - Second Gear
BEARING, Needle Roller, 2nd Gear, (52.8mmODx36mmWD)

15

4338933
Ring
RING, Retaining
MSRP: $5.70 Your Price: $4.47
1
Add To Cart

16
4636369
Gear - Second

17

4338910
Ring
RING, Retaining
MSRP: $7.20 Your Price: $4.87
1
Add To Cart

17
83506252
Ring - Synchronizer
RING, Synchronizer 1st & 2nd Gear, No. 1
- Require Quantity: 2
- Package Quantity: 1
MSRP: $15.62 Your Price: $12.32
1
Add To Cart

18
83506254
Spring - Synchronizer Key
SPRING, Synchronizer Shifting Key
- Require Quantity: 2
- Package Quantity: 1

18
4741239
Sprocket, Drive, With Bearings
- With Transfer Case Assembly 52097601, With 5.2L Engine

19
4269185
Bearing - Output Shaft
BEARING, Drive Sprocket
- Require Quantity: 2
- Package Quantity: 1
MSRP: $46.15 Your Price: $13.36
1
Add To Cart

19
83506247
Hub - Synchronizer
HUB, Synchronizer, 1st & 2nd Gear

20
83506250
Key - Synchronizer
KEY, Synchronizer, No. 1
- Require Quantity: 3
- Package Quantity: 1

21

4269189
Bearing - Output Shaft
BEARING, Front Output Shaft, Rear Needle, (1-7/8"OD)
MSRP: $131.00 Your Price: $87.26
1
Add To Cart

21
83506093
Ring
SNAP RING, Output Shaft Synchronizer, 1st & 2nd Gear
Stamped B (X=2.35mm/2.40mm)
21
83506094
Ring
SNAP RING, Output Shaft Synchronizer, 1st & 2nd Gear
- Stamped C (X=2.40mm/2.45mm)
21
83506095
Ring
SNAP RING, Output Shaft Synchronizer, 1st & 2nd Gear
- Stamped D (X=2.45mm/2.50mm)
21
83506096
Ring
SNAP RING, Output Shaft Synchronizer, 1st & 2nd Gear
- Stamped E (X=2.50mm/2.55mm)
21
83506097
Ring
SNAP RING, Output Shaft Synchronizer, 1st & 2nd Gear
- Stamped F (X=2.55mm/2.60mm)
21
83506098
Ring
SNAP RING, Output Shaft Synchronizer, 1st & 2nd Gear
- Stamped G (X=2.60mm/2.65mm)

22
4338935
Chain - Transfer Case
CHAIN, Drive, Transfer Case
- With Transfer Case Assembly 52097600

22

5252082
Gear - Reverse

23
4636368
Gear - First
MSRP: $206.19 Your Price: $162.65
1
Add To Cart

23
4338934
Shaft - Transfer Case
SHAFT, Output, Front
MSRP: $320.63 Your Price: $252.93
1
Add To Cart
23
4636965
Shaft - Transfer Case
SHAFT, Output, Front

24
4446488
Nut - Hexagon Flange
NUT, Front Output Shaft Yoke

24
83506280
Shim - Output Shaft
SPACER, Output Shaft 1st Gear

25
83506075
Bearing - First Gear
BEARING, Needle, 1st Gear, (45.8mmODx44.5mmWD)

25

4338894
Ring - Bearing
RING, Snap Output Shaft, Front Bearing Retainer
MSRP: $7.80 Your Price: $4.47
1
Add To Cart

26
83506008
Pin - Mainshaft
PIN, Output Shaft 1st Gear
MSRP: $8.92 Your Price: $7.04
1
Add To Cart

26

4338893
Output Shaft Seal
SEAL, Oil, Front Output Shaft Yoke
MSRP: $42.15 Your Price: $29.77
1
Add To Cart

27
83500573
Ball - Reverse

27
4446494
Yoke
YOKE, Front Output Shaft, With Slinger

28

83506246
Washer - First Gear
WASHER, Thrust 1st Gear

28
4446487
Washer - Flat
WASHER, Yoke
MSRP: $7.35 Your Price: $4.93
1
Add To Cart

29
83506073
Bearing - Output Shaft
BEARING, OuTput (85mmODx23mmWD)
MSRP: $73.15 Your Price: $57.70
1
Add To Cart

29
4741240
Hub - Synchronizer Mode
HUB
- Replaced By: 5159201AA
MSRP: $127.00 Your Price: $83.23
1
Add To Cart

30
6500318
Idler Pulley Bolt
BOLT, Front Bearing Retainer
- Require Quantity: 5
- Package Quantity: 1

30
5252083
Gear - Fifth

31
4338891
Bearing - Input Gear
BEARING, Input Gear, Ball
MSRP: $137.00 Your Price: $69.63
1
Add To Cart

31
83506268
Ring
SNAP RING, Output Shaft 5th Gear
Stamped A (X=2.75mm/2.80mm)
31
83506269
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped B (X=2.80mm/2.85mm)
31
83506270
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped C (X=2.85mm/2.90mm)
31
83506271
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped D (X=2.90mm/2.95mm)
31
83506272
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped E (X=2.95/3.00mm)
31
83506273
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped F (X=3.00mm/3.05mm)
31
83506274
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped G (X=3.05mm/3.10mm)
31
83506275
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped H (X=3.10mm/3.15mm)
31
83506276
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped I (X=3.15mm/3.20mm)
31
83506277
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped I (X=3.20mm/3.25mm)
31
83506278
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped K (X=3.25mm/3.30mm)
31
83506279
Ring
SNAP RING, Output Shaft 5th Gear
- Stamped L (X=3.30mm/3.35mm)

32
83506226
Tube Oil Receiver
PIPE, Oil Receiver, 2WD

32

3821558
Ring
RING, Snap Input Bearing Retainer
MSRP: $12.65 Your Price: $8.70
1
Add To Cart
