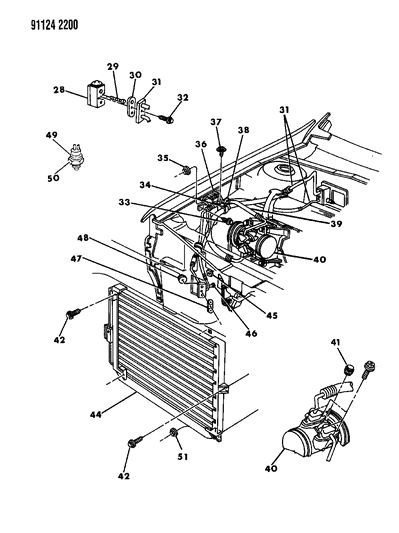

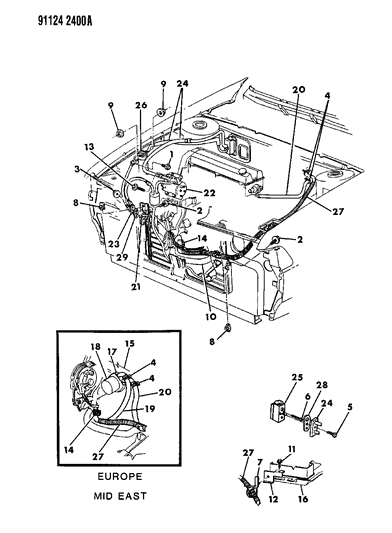

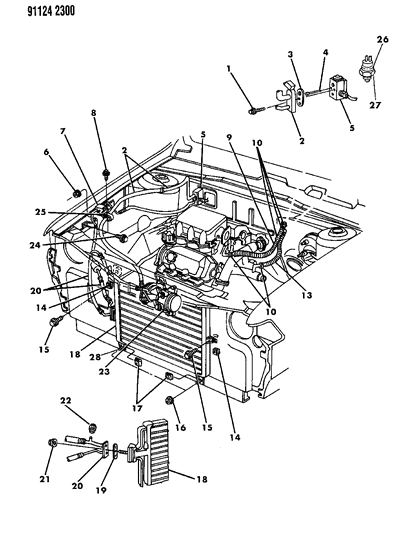

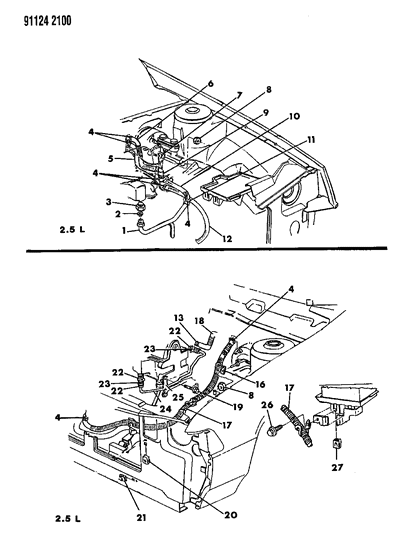

1991 Chrysler LeBaron Sedan Plumbing - A/C & Heater

SCREW and WASHER, Suction and Liquid Line Mtg. to H-Valve

CLAMP

CLAMP, Heater Hose

SCREW, Expn. Valve Mtg.

SCREW, Suction Line to H-Valve

VALVE, A/C Expn. (H-Valve)

SCREW, Expansion Valve Mounting

HOSE, 5/8" I.D. 50 Ft. Roll

CLAMP

SLEEVE

HOSE, 5/8" I.D. 50 Ft. Roll

CLAMP

HOSE, Heater to Water Pump

CLAMP, Hose to Water Pump

U-NUT

HOSE, Heater Engine to Core

GASKET, A/C Disch. Liq. Line Mtg. to Cond.

SCREW, w/Washer

U-NUT

HOSE, Water By Pass Tube

TUBE, Water By-Pass

VALVE, Expansion (H-Type)

SCREW, w/Washer

SWITCH, A/C Low Pressure Cut Off

SEAL, A/C Low Pressure Cut Off Switch

VALVE, Expansion (H-Type)

GASKET, Discharge and Liquid to Condenser

SCREW, Expansion Valve Mtg.

SCREW, Suction and Liquid Line Mtg.

GASKET

SWITCH, A/C Low Pressure Cut Off

SEAL, A/C Low Pressure Cut Off Switch

GASKET, A/C Disch. Liq. Line Mtg. to Cond.

GASKET, Expansion Valve Mtg.

GASKET, Expn. Valve Mtg.

HOSE, Vacuum, Turbo

SLEEVE, Muffler Silencer
