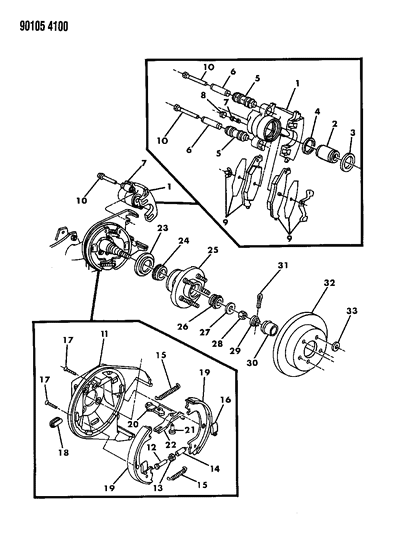

Diagram (1 of 1): BRAKES, SERVICE BRAKES, REAR DISC P,A BODY

1990 Dodge Shadow Brakes, Rear Disc Diagram

Enlarge Diagram

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

2
4383878
Caliper Piston
PISTON, Rear Wheel Disc Brake
- Require Quantity: 2
- Package Quantity: 1

3
4383879
Caliper Overhaul Kit
BOOT ASSEMBLY, Rear Wheel Disc Brake Piston
- Require Quantity: 2
- Package Quantity: 1

4
4383880
Caliper Overhaul Kit
SEAL, Rear Wheel Disc Brake Piston
- Require Quantity: 2
- Package Quantity: 1

7
3780788
Screw - Bleeder
SCREW, Rear Wheel Disc Brake Bleeder
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 5015248AB
MSRP: $30.30 Your Price: $20.52
1
Add To Cart

8
4238717
Cap - Bleeder
CAP, Rear Wheel Disc Brake Screw
- Require Quantity: 2
- Package Quantity: 1
- Replaced By: 68338711AA
MSRP: $7.55 Your Price: $5.10
1
Add To Cart

13
4383539
Nut - Parking Brake Adjusting
NUT, Rear Wheel Parking Brake Adjuster
- Require Quantity: 2
- Package Quantity: 1
MSRP: $27.30 Your Price: $19.04
1
Add To Cart

15
4383541
Parking Brake Shoes Spring
SPRING, Rear Wheel Parking Brake Shoe Return, Upper (Yellow)
SPRING, Rear Wheel Parking Brake Shoe Return, Upper (Yellow)
Require Quantity: 2
Package Quantity: 1
MSRP: $13.45 Your Price: $9.16
1
Add To Cart
15
4383542
Spring - Parking Brake Shoe Return
SPRING, Rear Wheel Parking Brake Shoe Return, Upper (Yellow)
- Lower (Blue)
- Require Quantity: 2
- Package Quantity: 1
MSRP: $6.87 Your Price: $5.42
1
Add To Cart

16
4383543
Retainer - Brake Shoe Hold Down
CLIP, Rear Wheel Parking Brake Shoe Hold down
- Require Quantity: 4
- Package Quantity: 1
MSRP: $12.30 Your Price: $6.94
1
Add To Cart

17
4238733
Pin - Brake Shoe Hold Down
PIN, Rear Wheel Parking Brake Shoe Hold Down Spring
- Require Quantity: 4
- Package Quantity: 1

18
4238721
Plug - Brake Adjusting Hole
PLUG, Rear Wheel Parking Brake Adj. Hole
- Require Quantity: 2
- Package Quantity: 1
MSRP: $10.20 Your Price: $7.02
1
Add To Cart

19
BHKP7301
Parking - Rear Brake
SHOE and LINING, Rear Wheel Parking Brake (4 Pack)
- Mopar Parking Brake Hardware Kit

20
4423538
Lever - Parking Brake Adjusting
LEVER and LINK, Rear Wheel Parking Brake , Right
LEVER and LINK, Rear Wheel Parking Brake , Right
20
4423539
Lever - Parking Brake Adjusting
LEVER and LINK, Rear Wheel Parking Brake , Right
- LEVER and LINK, Rear Wheel Parking Brake , Left

23
4238570
Oil Seal
SEAL, Dust
- Require Quantity: 2
- Package Quantity: 1
MSRP: $10.42 Your Price: $8.22
1
Add To Cart

24
4238567
Wheel Bearing
CONE, Rear Wheel Inner Brg.
- Require Quantity: 2
- Package Quantity: 1
MSRP: $45.28 Your Price: $35.72
1
Add To Cart

25
5204272
Stud - Wheel
HUB, Rear Wheel Disc Brake
- STUDS - 14" Wheels
- Require Quantity: 10
- Package Quantity: 1
- Replaced By: 5204272AB
MSRP: $22.15 Your Price: $14.93
1
Add To Cart

26
3683974
Wheel Bearing
BEARING PACKAGE, Outer
- Require Quantity: 2
- Package Quantity: 1
MSRP: $23.14 Your Price: $18.25
1
Add To Cart

27
600194
Thrust Washer
WASHER, Rear Wheel Brg. Thrust
- Require Quantity: 2
- Package Quantity: 1

28
6029692
Nut
- Require Quantity: 2
- Package Quantity: 1
MSRP: $18.75 Your Price: $14.57
1
Add To Cart

29
1673324
Nut
LOCK
- Require Quantity: 2
- Package Quantity: 1
MSRP: $5.42 Your Price: $4.27
1
Add To Cart

30
3580894
Dust Cap
CAP, Grease
- Require Quantity: 2
- Package Quantity: 1

32
4383551
Brake Rotor
DISC, Rear Wheel Brake
- Require Quantity: 2
- Package Quantity: 1
