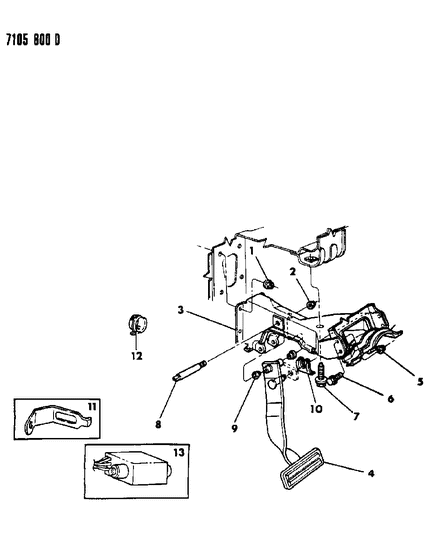

Diagram (1 of 1): BRAKES, SERVICE PEDAL, BRAKE (M BODY)

1987 Dodge Diplomat Brake Pedal Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
118614
Nut - Hexagon
NUT and WASHER
- Require Quantity: 4
- Package Quantity: 1

4
4019660
Pedal
PEDAL, Brake, w/Auto. Trans.
- PAD, Brake Pedal, w/Auto. Trans.

5
118614
Nut - Hexagon
NUT and WASHER
- Require Quantity: 4
- Package Quantity: 1

6
181088
Bolt - Hexagon Head
SCREW and WASHER
- Require Quantity: 4
- Package Quantity: 1

7
181086
Bolt - Hexagon Head
SCREW and WASHER
- Replaced By: 220800
MSRP: $8.55 Your Price: $6.60
1
Add To Cart

9
2467770
Pedal Shaft Bushing
BUSHING, Brake Booster Lever Hub
- Require Quantity: 2
- Package Quantity: 1

10
4294036
Clip - Master Cylinder Push Rod Pi
CLIP
- Replaced By: 4581512AA
MSRP: $2.45 Your Price: $1.79
1
Add To Cart

12
6031704
Retainer - Brake Stop Lamp Switch
CLIP, Stop Lamp Sw. to Brkt.
