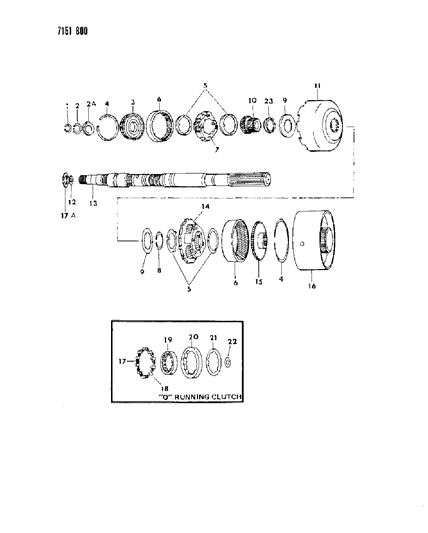

1.TRANSMISSION, AUTO. GEAR TRAIN AND OUTPUT SHAFT AUTOMATIC TRANSMISSION, A727 M BODY

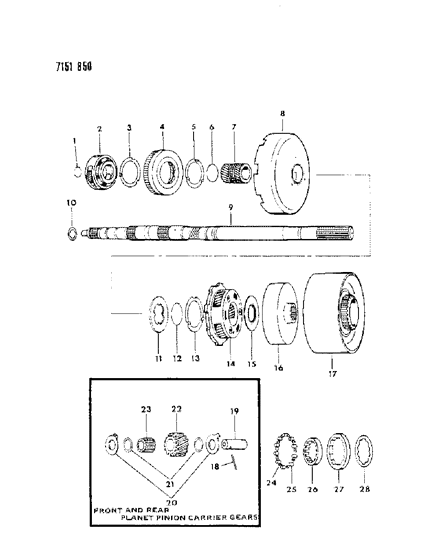

2.TRANSMISSION, AUTO. GEAR TRAIN AND OUTPUT SHAFT AUTOMATIC TRANSMISSION, A999 M BODY

Sort by:

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
6024311
Snap Ring
SNAP RING, Output Shaft, .048" - .052" Thk.
.055" - .059" Thk.
1
6024312
Snap Ring
SNAP RING, Output Shaft, .048" - .052" Thk.
- .062" - .066" Thk.

1
6026289
Snap Ring
SNAP RING, Output Shaft, .946" I.D., .040" Thk.
SNAP RING, Output Shaft, .946" I.D., .040" Thk.
MSRP: $9.34 Your Price: $7.36
1
Add To Cart
1
6030404
Snap Ring - Output Shaft
SNAP RING, Output Shaft, .946" I.D., .040" Thk.
- .906" I.D., .084" Thk., White
1
6030938
Ring
SNAP RING, Output Shaft, .946" I.D., .040" Thk.
- .910" I.D., .062" Thk., Green

2
6030576
Snap Ring - Annulus Gear
SNAP RING, Frt. Annulus Gear Support, 1-7/16" I.D.

2A
3681969
Washer - Annulus Gear
WASHER, Frt. Annulus Gear Support Thrust w/Lip, Steel Backed Bronze, 2-1/8" O.D.

3
2801060
Washer - Planetary Carrier
WASHER, Frt. Carrier Thrust, w/4 Tabs, 3-13/32" O.D.

4
2892656
Gear - Front Annulus
GEAR, w/Support, Frt. Annulus, 2-1/2" I.D. Center Hole

4
1942444
Ring
SNAP RING, Annulus Gear

5
3681935
Washer - Planetary Carrier
WASHER, Planet Pinion Carrier Thrust, Front
Rear
Require Quantity: 2
Package Quantity: 1
MSRP: $8.92 Your Price: $7.04
1
Add To Cart
5
4130518
Washer - Planetary Carrier
WASHER, Planet Pinion Carrier Thrust, Front
- WASHER, Planet Pinion Carrier Thrust, Front
- Require Quantity: 2
- Package Quantity: 1

5
1942081
Washer
WASHER, Sun Gear Driving Shell Thrust, w/3 Outside Tabs
MSRP: $2.48 Your Price: $1.96
1
Add To Cart

6
3743184
Gear - Rear Annulus
GEAR, Annulus, Front
Rear
MSRP: $12.10 Your Price: $9.55
1
Add To Cart
6
4130512
Gear - Front Annulus
GEAR, Annulus, Front
- GEAR, Annulus, Front

6
1736521
Ring - Sun Gear
RING, Sun Gear Driving Shell, Lock
MSRP: $13.90 Your Price: $12.10
1
Add To Cart

7
4130514
Carrier - Planetary Pinion
CARRIER ASSEMBLY, Front Planet Pinion, 4 Pinion
CARRIER ASSEMBLY, Front Planet Pinion, 4 Pinion
7
R4130514
Carrier Assembly, Front Planet Pinion
CARRIER ASSEMBLY, Front Planet Pinion, 4 Pinion
- CARRIER, Planetary Pinion

7
2801311
Gear - Sun
GEAR, w/Bushing, Sun

8
1942439
Ring - Sun Gear Shell
RING, Sun Driving Shell Lock, Steel, 1-41/64" O.D.

10
4130685
Gear - Sun
GEAR, w/Bushing Trans. Sun

11
1942080
Plate - Sun Gear Driving Shell
PLATE, Sun Gear Driving Shell Thrust, w/4 Inside Tongs

12
1736521
Ring - Sun Gear
RING, Sun Gear Driving Shell, Lock
MSRP: $13.90 Your Price: $12.10
1
Add To Cart

13
1942081
Washer
WASHER, Carrier Thrust, Rear
MSRP: $2.48 Your Price: $1.96
1
Add To Cart

14
2466539
Carrier Planetary Pinion
CARRIER ASSEMBLY, Rear Planet Pinion

15
2400580
Plate - Annulus Gear Thrust
PLATE, Rear Annulus Gear Thrust, w/31 Inside Teeth, 3-23/64" O.D.

15

3515501
Support - Annulus Gear
SUPPORT, Rr. Annulus Gear, 62T., 28T., 4" O.D.

17A
4058982
Plate Transmission Input Shaft Th
PLATE, Input Shaft Thrust
MSRP: $3.47 Your Price: $2.74
1
Add To Cart

18
6024666
Pin
PIN, Frt. and Rr. Planet Pinion Shaft

19
4428223
Shaft - Planetary
SHAFT, Frt. and Rr. Planet Pinion

20
2801315
Washer - Planetary Carrier
WASHER, Frt. and Rr. Planet Pinion

21
2204649
Ring - Planet Pinion
RING, Frt. and Rr. Pinion Roller, Thrust

22
2400667
Pinion - Transmission Planetary
PINION, Frt. and Rr. Planet

23
4130736
Shim - Sun Gear
SPACER, Sun Gear, 4 Inner Teeth, 2" O.D.

25
2808673
Roller Package - Overrunning Clutch
ROLLER and SPRING PACKAGE, "O" Running Clutch

26
3420100
Race Package Transmission O Running Cl A7
RACE PACKAGE, w/Rollers and Springs, "O" Running Clutch

27
1942095
Cam - Transmission Overrunning Clutch
CAM, "O" Running Clutch

28
2801426
Retainer - Transmission Over Running Clutch Spring
RETAINER, "O" Running Clutch Spring

3410465
Bearing - Output Shaft
BEARING, Output Shaft, 2.44" O.D.

2466224
Bearing - Output Shaft
BEARING, Output Shaft, 2.83" O.D., 1.37" I.D.

3681949
Ring - Planet Pinion
RING, Planet Pinion Roller Thrust, Front
- Require Quantity: 8
- Package Quantity: 1
MSRP: $2.50 Your Price: $1.65
1
Add To Cart

3681949
Ring - Planet Pinion
Rear
- Require Quantity: 8
- Package Quantity: 1
MSRP: $2.50 Your Price: $1.65
1
Add To Cart

6029675
Snap Ring - Output Shaft
SNAP RING, Brg., 1-37/64" O.D.

6025570
Snap Ring
SNAP RING, Output Shaft Bearing, Outer, 1.26" I.D.

3420100
Race Package Transmission O Running Cl A7
RACE PACKAGE, w/Rollers and Springs
2808673
Roller Package - Overrunning Clutch
ROLLER and SPRING PACKAGE, "O" Running Clutch
