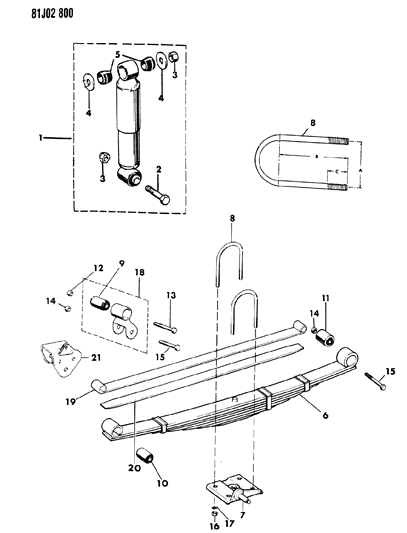

Diagram (1 of 1): FRONT SUSPENSION & DRIVE FRONT SPRING AND SHOCK ABSORBER SJ CHEROKEE, SJ WAGONEER J10, J20

1986 Jeep J20 Front Spring & Shock Absorber Diagram

Enlarge Diagram

Sort by:

Ref No.

Ref No.

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

1
G0073575
Shock Absorber
- Mopar V-Line Alternative Part (Heavy Duty)
  Mopar V-Line Alternative Part (Standard Duty)

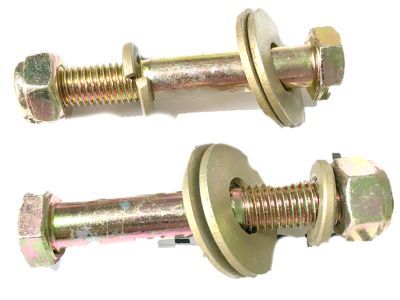

2
J0181709
Bolt - Hexagon Head
BOLT
- Require Quantity: 2
- Package Quantity: 1

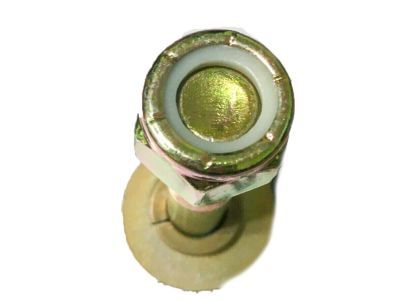

3
J4004311
Nut
- Require Quantity: 4
- Package Quantity: 1
Your Price: $14.57
1
Add To Cart

5
J0637936
Bushing
- Require Quantity: 4
- Package Quantity: 1
MSRP: $18.75 Your Price: $14.57
1
Add To Cart

6
J5362949
Spring
SPRING ASSEMBLY
Six Leaf
Require Quantity: 2
Package Quantity: 1
6
J5362950
Spring
SPRING ASSEMBLY
- Five Leaf
- Require Quantity: 2
- Package Quantity: 1

7
J5359582
Plate - Spring - Ing
BRACKET
- Left
MSRP: $37.10 Your Price: $25.81
1
Add To Cart

8
J8129475
U-Bolt
- A=3.40" B=5.50" C=3.00"
- Require Quantity: 4
- Package Quantity: 1

16
J9420350
Nut
- Require Quantity: 8
- Package Quantity: 1

18
J5352863
Spring Shackle
SHACKLE
- Require Quantity: 2
- Package Quantity: 1

19
J8134730
Leaf - Front Spring No. 1
SPRING, Front Leaf No. 1
With Five Leaf Assembly
Require Quantity: 2
Package Quantity: 1
19
J8134734
Leaf - Front Spring No. 1
SPRING, Front Leaf No. 1
- EXPORT (Heavy Duty)
  Eight Cylinder, EXPORT (Heavy Duty)
- Fitting Vehicle Options: 15,16,17,18, 25,26, 27
- Require Quantity: 2
- Package Quantity: 1
19
J8134738
Leaf - Front Spring No.1
SPRING, Front Leaf No. 1
- Six Cylinder, Soft Ride (Light Duty)
- Fitting Vehicle Options: 15,16,18
- Require Quantity: 2
- Package Quantity: 1

20
J8134732
Leaf - Front Spring No. 2
SPRING, Front Leaf No. 2, with Seven Leaf Assembly
(Light Duty)
Six Cylinder, EXPORT (Heavy Duty)
Require Quantity: 2
Package Quantity: 1
20
J8134733
Leaf - Front Spring No. 2
SPRING, Front Leaf No. 2, with Seven Leaf Assembly
- EXPORT (Heavy Duty)
  Eight Cylinder, EXPORT (Heavy Duty)
- Require Quantity: 2
- Package Quantity: 1
